Name: ASRock B550M Pro SE AM4 DDR4 Micro ATX Motherboard - (B550M Pro SE) - Variety Infotech
SKU: B550M Pro SE
Price: 8242.00 INR
Availability: OutOfStock

ASRock B550M Pro SE AM4 DDR4 SATA 6Gb/s 1 PCIe 4.0 x16 Micro ATX Motherboard

Feature

POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Model
Brand	ASRock
Model	B550M Pro SE

Supported CPU
CPU Socket Type	AM4
CPU Type	– Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* * Not compatible with AMD Athlon™ Processors.

Chipsets
Chipset	AMD B550

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	– AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC)/3200(OC)/2933/2667/2400/2133 non-ECC, un-buffered memory* * For Ryzen Series APUs (Picasso, Cezanne and Renoir), ECC is only supported with PRO CPUs. * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) * For non-XMP memory frequency support, please refer to the Specification on ASRock’s website. * For more details, please refer to the QVL on ASRock’s website.
Maximum Memory Supported	128GB
Memory Feature	Supports Extreme Memory Profile (XMP) memory modules

Expansion Slots
PCI Express 4.0 x16	AMD Ryzen series CPUs (Vermeer and Matisse) – 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs (Cezanne and Renoir) – 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs (Picasso) – 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)* * Supports NVMe SSD as boot disks – Supports AMD CrossFire
PCI Express x1	1 x PCIe 3.0 x1 Slot (PCIE2: x1 mode)

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso)* Chipset: – 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes** Supports NVMe SSD as boot disks
SATA RAID	0/1/10

Onboard Audio
Audio Chipset	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control
Max LAN Speed	2.5Gbps

Rear Panel Ports
Back I/O Ports	– 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 4 x USB 3.2 Gen1 Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port with LED – HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Connectors
Onboard USB	– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Other Connectors	– 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 2 x RGB LED Headers* – 2 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin)* – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** – 1 x Front Panel Audio Connector* Support in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip * CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1~3/WP support the fan power up to 2A (24W). ** CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6″ x 9.6″
Power Pin	– 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector

Windows 11 Compatibility
Windows 11	Supported

Features
Features	Rock-Solid Durability – 8 Power Phase – Pre-Installed I/O Shield Ultrafast Connectivity – 2.5G LAN Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI – ASRock Full HD UEFI – ASRock Instant Flash

Packaging
Package Contents	– 1 x User Manual – 2 x SATA Data Cables – 2 x Screws for M.2 Sockets

Weight	1.1 kg
Dimensions	24.4 × 24.4 × 3.5 cm
Brand	ASROCK
Chipset	B550M
Product type	Normal
Motherboard size	M-ATX
Ram type	DDR4
Socket	AM4
Warranty	3 Years

Reviews

There are no reviews yet

Add a review

ASRock B550M Pro SE AM4 DDR4 Micro ATX Motherboard - (B550M Pro SE)

Rating*

0/5

* Rating is required

Your review

* Review is required

Name

* Name is required

* Email is required

Q & A

Ask a question

There are no questions yet

Need help? Call us:

AMD

Intel

Asus

Gigabyte

MSI

ASRock

Memory

Shop By Brand

AMD Series

Nvidia Series

Shop By Brand

Hard Disk

Solid State Drive

AIO Liquid Cooler

Air Cooler

Shop By Brand

SMPS Rating

SMPS Modularity

Shop By Brand

Case Size

Case Type

Shop By Brand

Panel Type

Monitor Series

Shop By Brand

ASRock B550M Pro SE AM4 DDR4 Micro ATX Motherboard – (B550M Pro SE)

Email when stock available

Have any Questions?

Feature

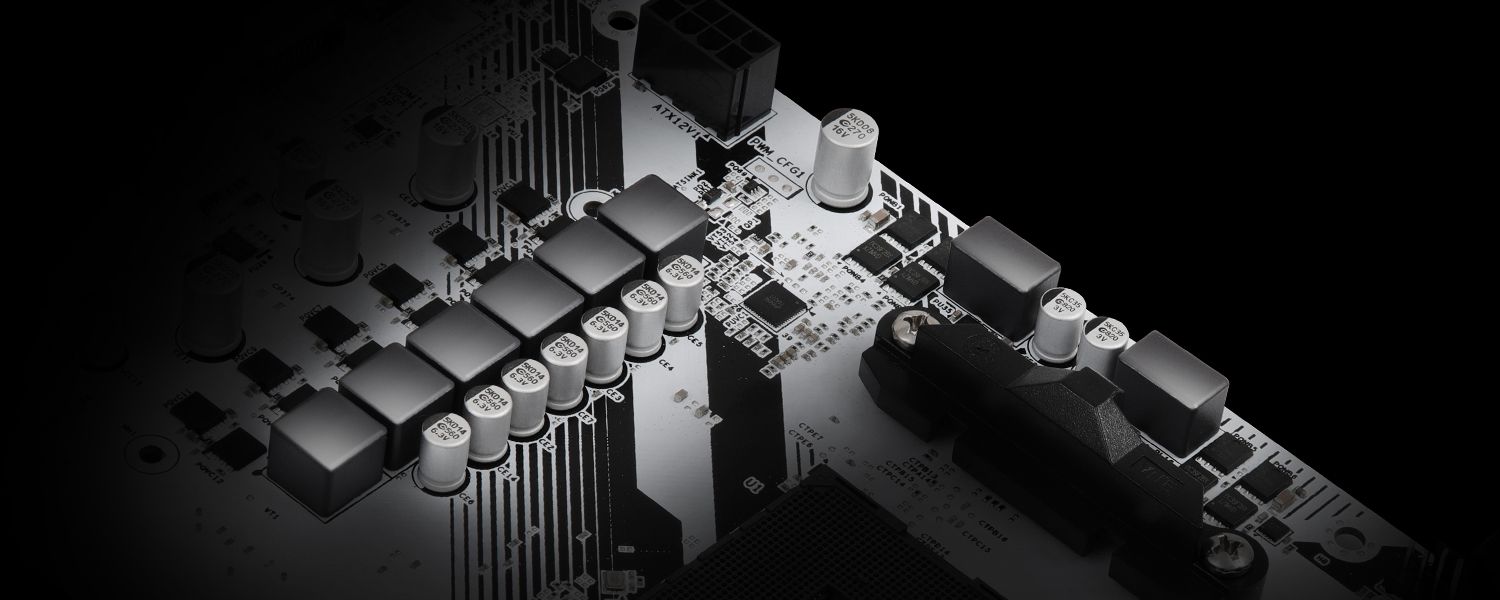

8 Power Phase Design

POLYCHROME RGB

Dragon 2.5 Gb/s LAN

AMD SMART ACCESS MEMORY

Dual M.2 For SSD, Supports NVMe Type M.2

Reinforced Steel Slot [PCIe 4.0 Version]

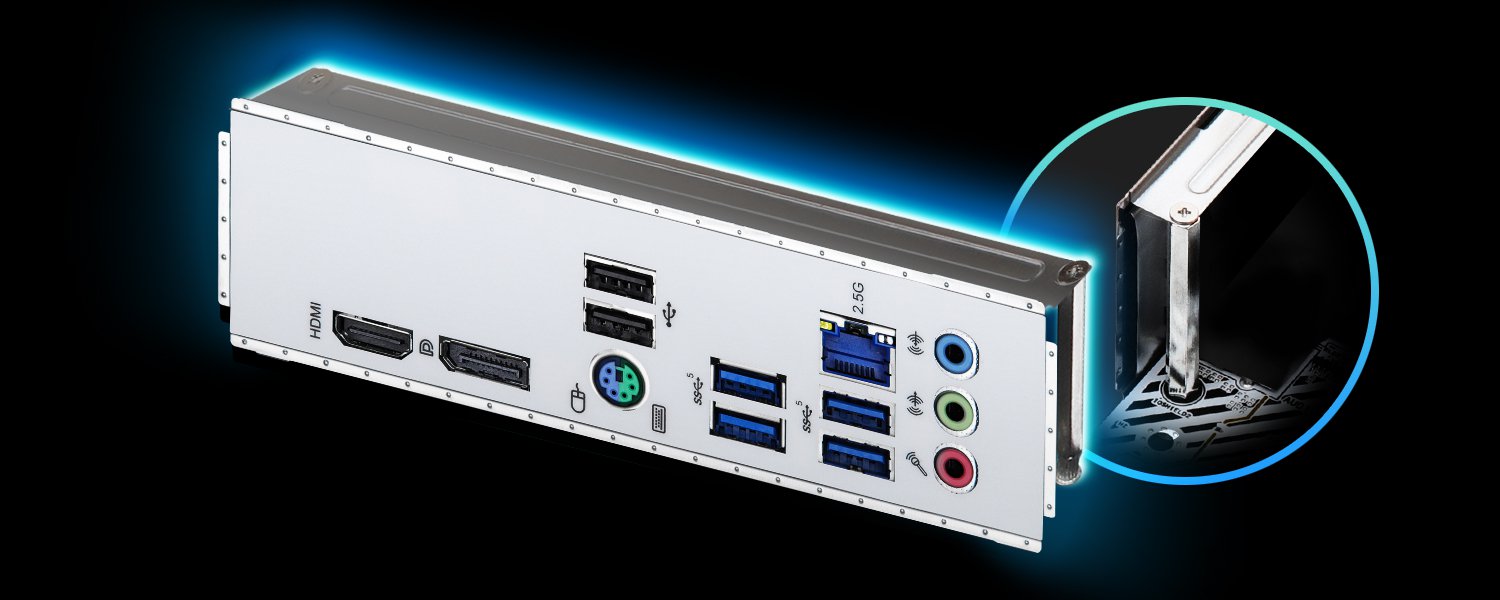

Pre-Installed IO Shield
