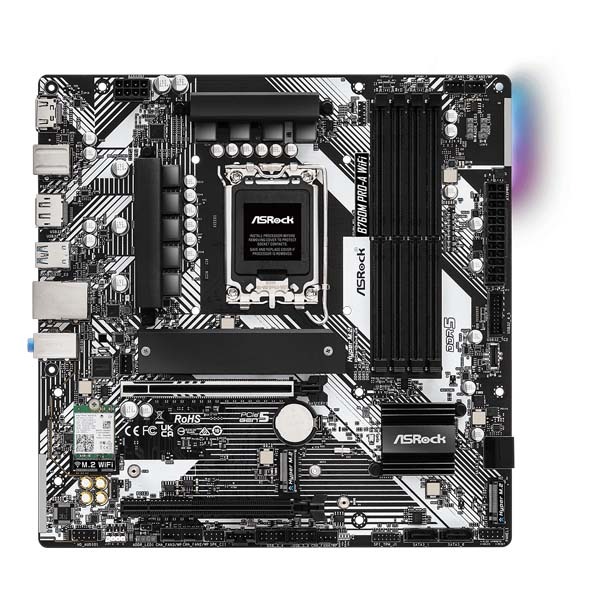

ASRock B760M Pro-A WiFi LGA 1700 DDR5 mATX Motherboard
Feature
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 7+1+1 Power Phase, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
6 USB 2.0 (2 Rear, 4 Front) - Dragon 2.5G LAN
- Killer 802.11axe WiFi 6E + Bluetooth
- Supports ASRock Auto Driver Installer
Optimized for stability, durability, and efficiency. It combines reliable performance, user-friendly features and streamlined style for daily computing tasks.
Optimized VRM Design
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
7+1+1 Power Phase Design
DDR5 XMP & EXPO Support
* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.
DDR5 Memory with Protection Circuit
PCIe 5.0 + Surface-Mount Tech
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
![Reinforced Steel Slot [PCIe 5.0 Version]](https://i0.wp.com/www.asrock.com/mb/features/Reinforced%20Steel%20Slot-B760M%20Pro-A%20WiFi.jpg?w=1200&ssl=1)
Reinforced Steel Slot
[PCIe 5.0 Version]
Extra anchor points Stronger latch Ensure signal stability Make sure heavy graphics cards to be well-installed.
POLYCHROME RGB
High Speed M.2 Solution(PCIe Gen4 x4)
Dragon 2.5 Gb/s LAN
Intel® Killer™ Wi-Fi 6E
Intel®Killer™ Wi-Fi 6E 802.11ax
The Intel® Killer™ Wi-Fi 6E delivers supercharged wireless performance and enables seamless, immersive online gameplay. These solutions deliver increased levels of control alongside the power required to get the most from today’s demanding online applications.
Wireless Networking
Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
M.2 Key-E Module Cap
Front USB 3.2 Gen1 Type-C
Auto Driver Installer
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
| Brand | ASRock |
| Color | Black |
| Model | B760M Pro-A Wi-Fi |
| Unique Feature | |
| Superb Productivity | – PCIe Gen5 (Graphic) |
| – Dual Channel DDR5 | |
| Rock-Solid Durability | – Server-Grade Low-Loss PCB |
| – 7+1+1 Power Phase, Dr. MOS for V Core +GT | |
| Ultrafast Connectivity | – 2.5G LAN, 802.11ax Wi-Fi 6E Module |
| EZ Update | ASRock Auto Driver Installer |
| CPU | – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) |
| – Supports Intel® Hybrid Technology | |
| – Supports Intel® Turbo Boost Max 3.0 Technology | |
| – Supports Intel® Thermal Velocity Boost (TVB) | |
| – Supports Intel® Adaptive Boost Technology (ABT) | |
| Chipset | Intel® B760 |
| Memory | – Dual Channel DDR5 Memory Technology |
| – 4 x DDR5 DIMM Slots | |
| – Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* | |
| – Max. capacity of system memory: 256GB | |
| – Supports Intel® Extreme Memory Profile (XMP) 3.0 | |
| *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. | |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12) |
| – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz | |
| – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz | |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| – Dragon RTL8125BG | |
| – Supports Dragon 2.5G LAN Software | |
| – Smart Auto Adjust Bandwidth Control | |
| – Visual User Friendly UI | |
| – Visual Network Usage Statistics | |
| – Optimized Default Setting for Game, Browser, and Streaming Modes | |
| – User Customized Priority Control | |
| Wireless LAN | – 802.11axe Wi-Fi 6E Module |
| – Supports IEEE 802.11a/b/g/n/ac/ax/axe | |
| – Supports Dual-Band 2×2 160MHz with extended 6GHz band* support | |
| – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology | |
| – Supports Bluetooth 5.3 + High speed class II | |
| – Supports MU-MIMO | |
| – Supports Killer LAN Software | |
| * Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. | |
| A 6GHz compatible router is required for 6E functionality. | |
| Slots | CPU: |
| – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* | |
| Chipset: | |
| – 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* | |
| – 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2 (Integrated Wi-Fi/BT) | |
| – Supports AMD CrossFire™ | |
| * Supports NVMe SSD as boot disks | |
| Storage | CPU: |
| – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| Chipset: | |
| – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| – 4 x SATA3 6.0 Gb/s Connectors | |
| *Supports Intel® Volume Management Device (VMD) | |
| Supports NVMe SSD as boot disks | |
| RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | Chipset: |
| – 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) | |
| – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) | |
| – 6 x USB 2.0 (2 Rear, 4 Front) | |
| * All USB ports support ESD Protection | |
| Connector | – 1 x SPI TPM Header |
| – 1 x Chassis Intrusion and Speaker Header | |
| – 1 x RGB LED Header* | |
| – 3 x Addressable LED Headers** | |
| – 1 x CPU Fan Connector (4-pin)*** | |
| – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
| – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
| – 1 x 24 pin ATX Power Connector | |
| – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
| – 1 x Front Panel Audio Connector | |
| – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) | |
| – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
| – 1 x Front Panel Type C USB 3.2 Gen1 Header | |
| * Supports in total up to 12V/3A, 36W LED Strip | |
| ** Support in total up to 5V/3A, 15W LED Strip | |
| *** CPU_FAN1 supports the fan power up to 1A (12W). | |
| **** CPU_FAN2/WP supports the fan power up to 2A (24W). | |
| ***** CHA_FAN1~4/WP support the fan power up to 2A (24W). | |
| ***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. | |

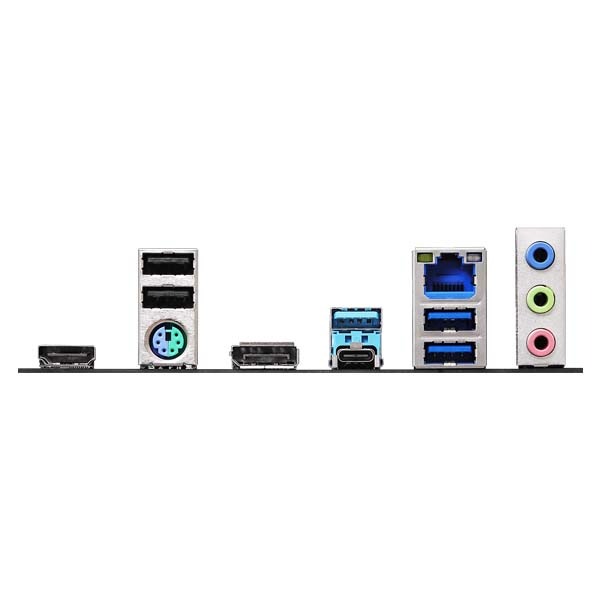

| Rear Panel I/O | – 2 x Antenna Ports |
| – 1 x PS/2 Mouse/Keyboard Port | |
| – 1 x HDMI Port | |
| – 1 x DisplayPort 1.4 | |
| – 1 x USB 3.2 Gen1 Type-C Port | |
| – 3 x USB 3.2 Gen1 Type-A Ports | |
| – 2 x USB 2.0 Ports | |
| – 1 x RJ-45 LAN Port | |
| – HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | Software |
| – ASRock Motherboard Utility (A-Tuning) | |
| – ASRock Dragon 2.5G LAN Software | |
| – Killer Control Center | |
| – ASRock Polychrome SYNC* | |
| UEFI | |
| – ASRock EZ Mode | |
| – ASRock Full HD UEFI | |
| – ASRock My Favorites in UEFI | |
| – ASRock Auto Driver Installer | |
| – ASRock Instant Flash | |
| – ASRock Easy RAID Installer | |
| *These utilities can be downloaded from ASRock Live Update & APP Shop. | |

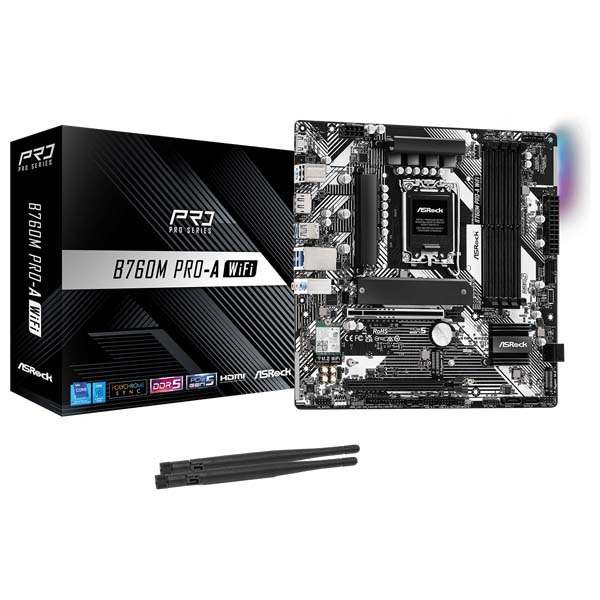

| Accessories | – 1 x User Manual |
| – 1 x I/O Shield | |
| – 2 x SATA Data Cables | |
| – 2 x SMA Wi-Fi Antenna Cables | |
| – 2 x ASRock Wi-Fi 2.4/5/6 GHz Antennas | |
| – 1 x Plastic Cover for Wi-Fi Module | |
| – 3 x Screws for M.2 Sockets | |
| Form Factor | – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Operating System | – Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | – FCC, CE |
| – ErP/EuP ready (ErP/EuP ready power supply is required) | |
| Warranty | 3 Years |
| Note | *Features, Price, and Specifications are subject to change without notice. |
| Dimensions | 24.4 × 24.4 cm |
|---|---|
| Brand | ASROCK |
| Color | Black |
| Product type | Gaming |
| Chipset | 760M |
| Socket | LGA 1700 |
| Ram type | DDR5 |
| Motherboard size | M-ATX |
| Warranty | 3 Years |
| Ean code | 4710483944796 |
