ASRock Radeon RX 7900 XTX Taichi 24GB OC Graphics Card – RX7900XTX-TC-24GO
Feature
Clock: GPU / Memory
- Boost Clock*: Up to 2680 MHz / 20 Gbps
- Game Clock**: 2510 MHz / 20 Gbps
Key Specifications
- AMD Radeon™ RX 7900 XTX GPU
- 24GB GDDR6 on 384-Bit Memory Bus
- 96 AMD RDNA™ 3 Compute Units (With Rt+Ai Accelerators)
- 96MB AMD Infinity Cache™ Technology
- PCI® Express 4.0 Support
- 3 x 8-pin Power Connectors
- 3 x DisplayPort™ 2.1 / 1 x HDMI™ 2.1
Key Features
- Polychrome SYNC
- Taichi 3X Cooling System
- ARGB Backplate
- Reinforced Metal Frame
- Dual BIOS
- 22 Power Phase Design
- 110/100/110mm Striped Ring Fans

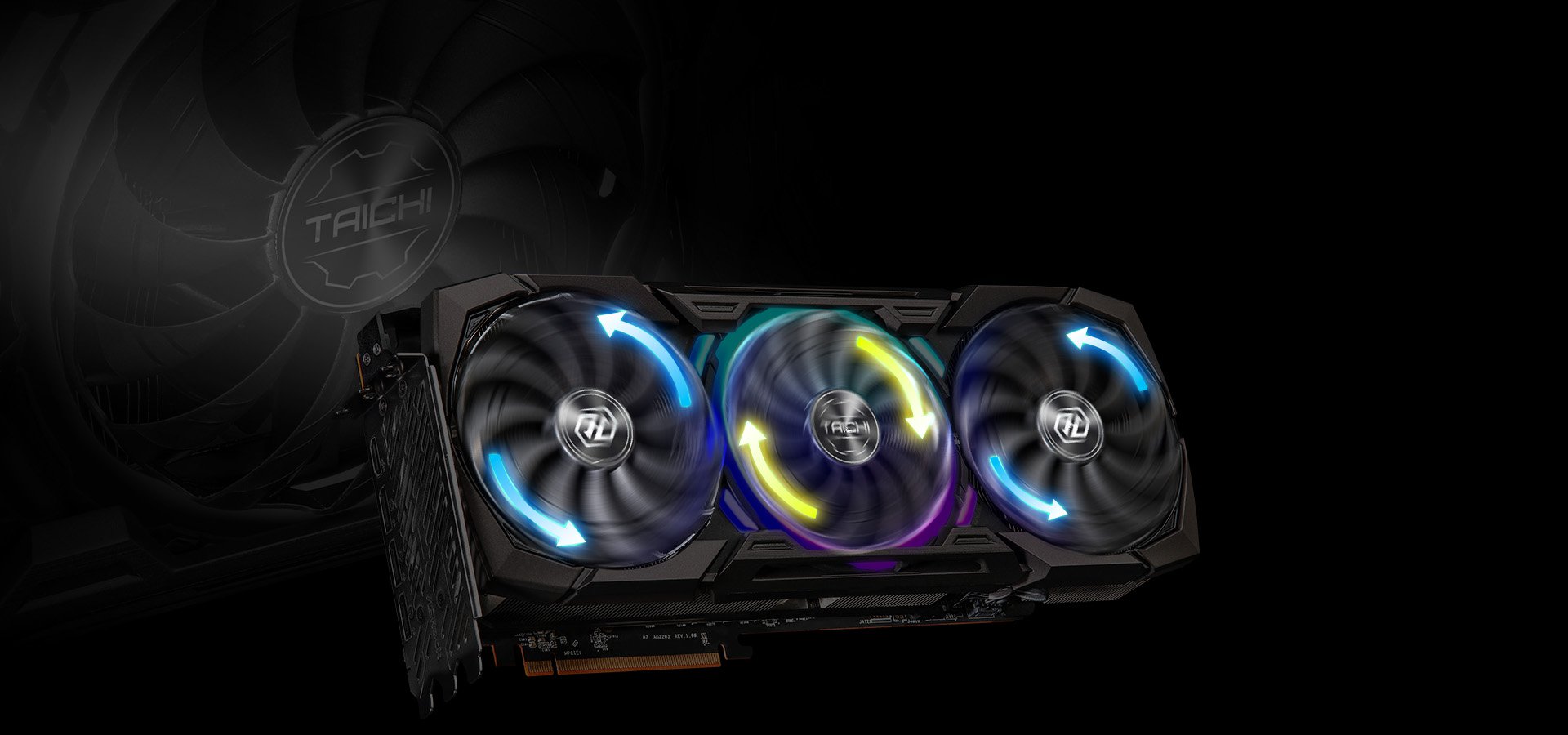

Reverse Spin
The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.

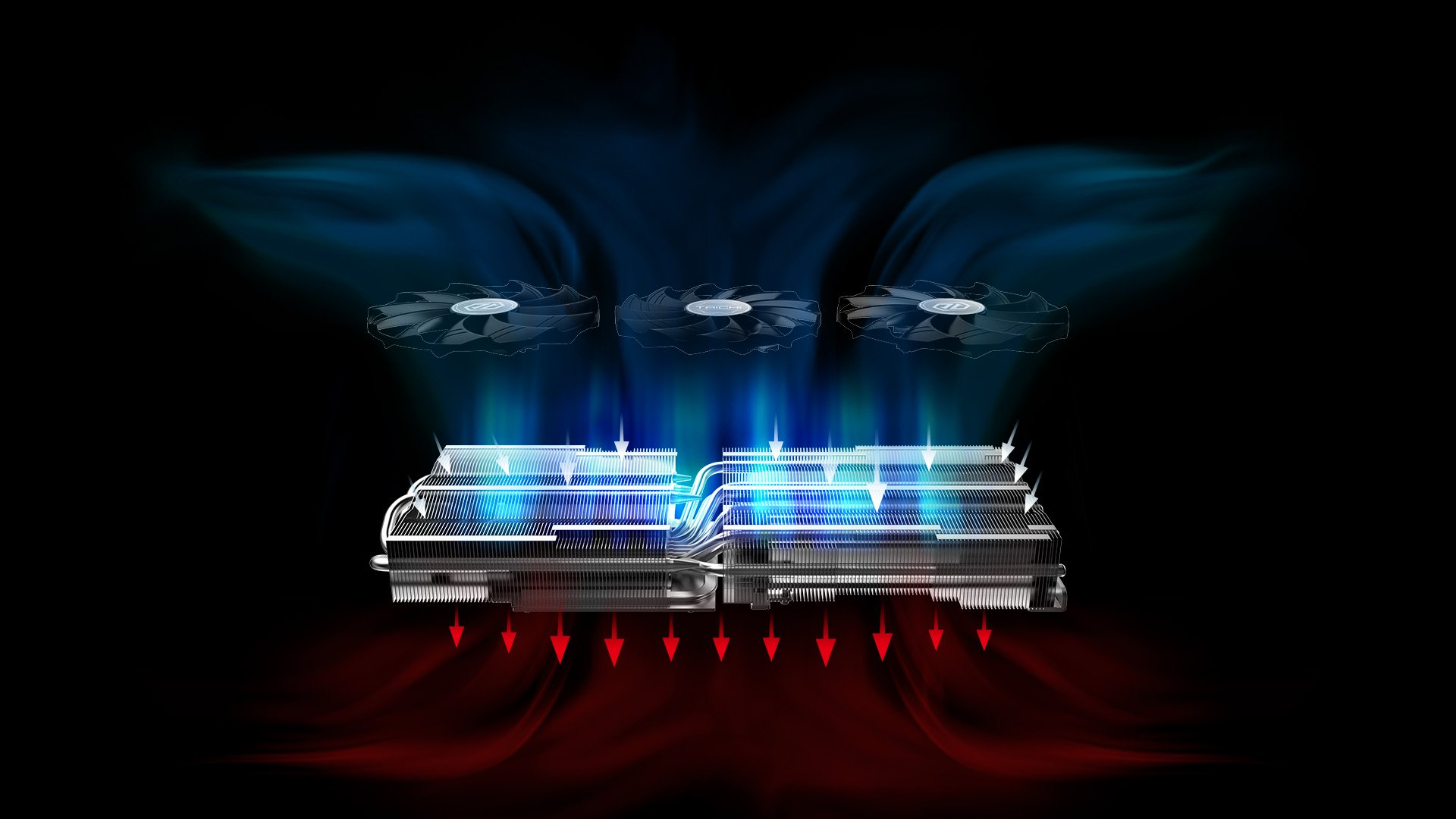

Taichi 3X Cooling System
Crafted for the best balance between the thermal efficiency and silence by all the details improved.

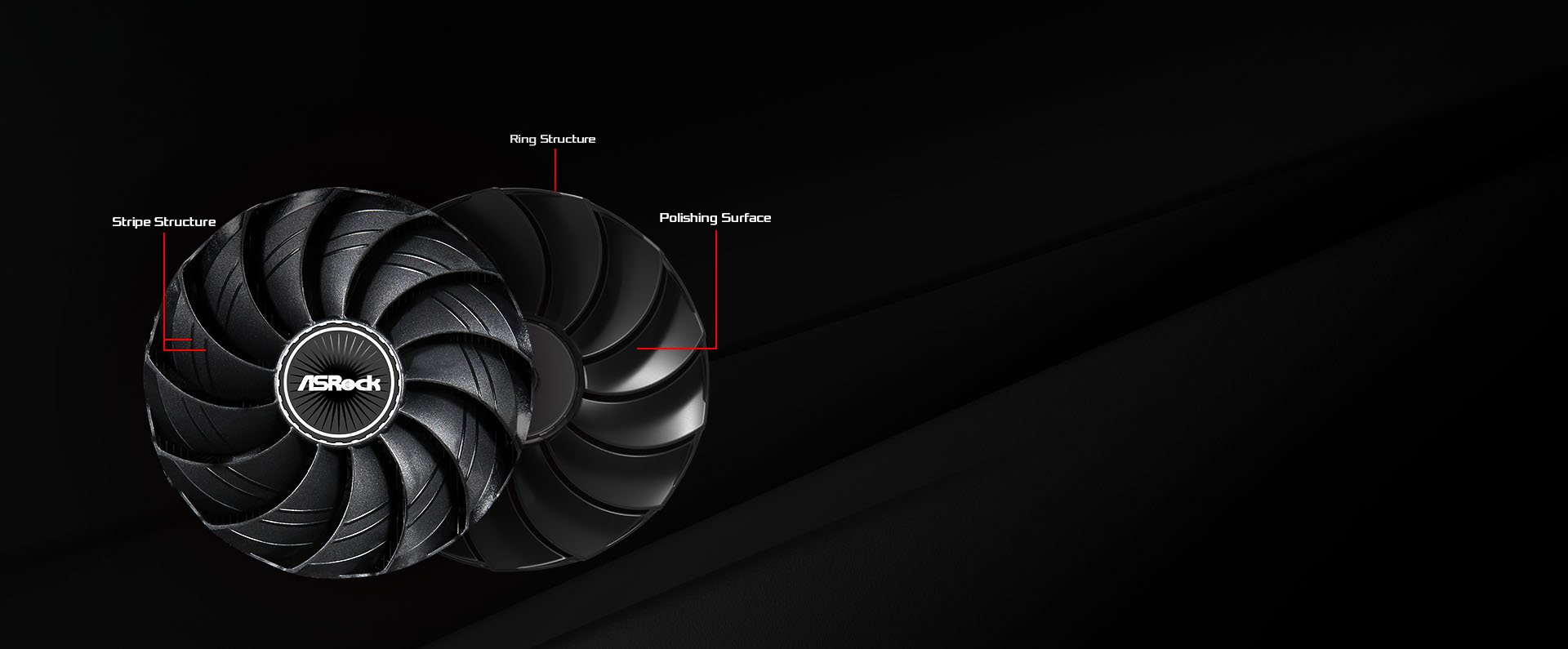

Striped Ring Fan
Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

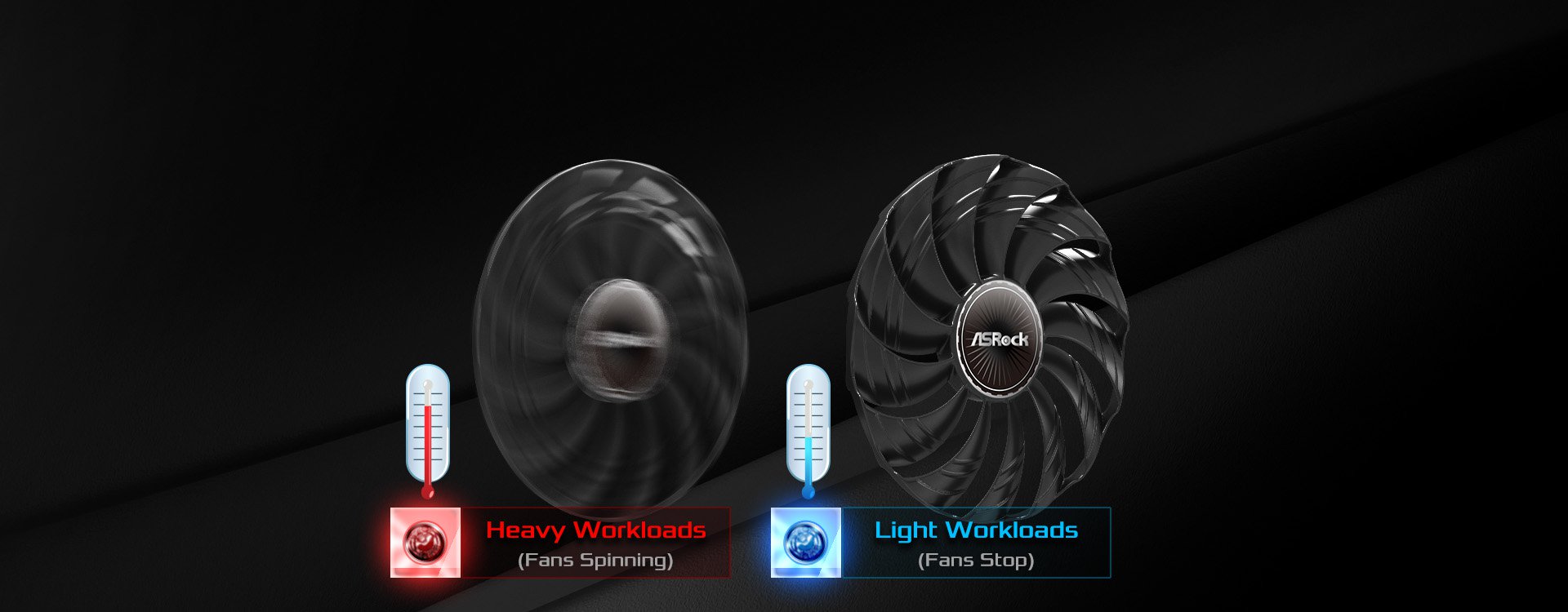

0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

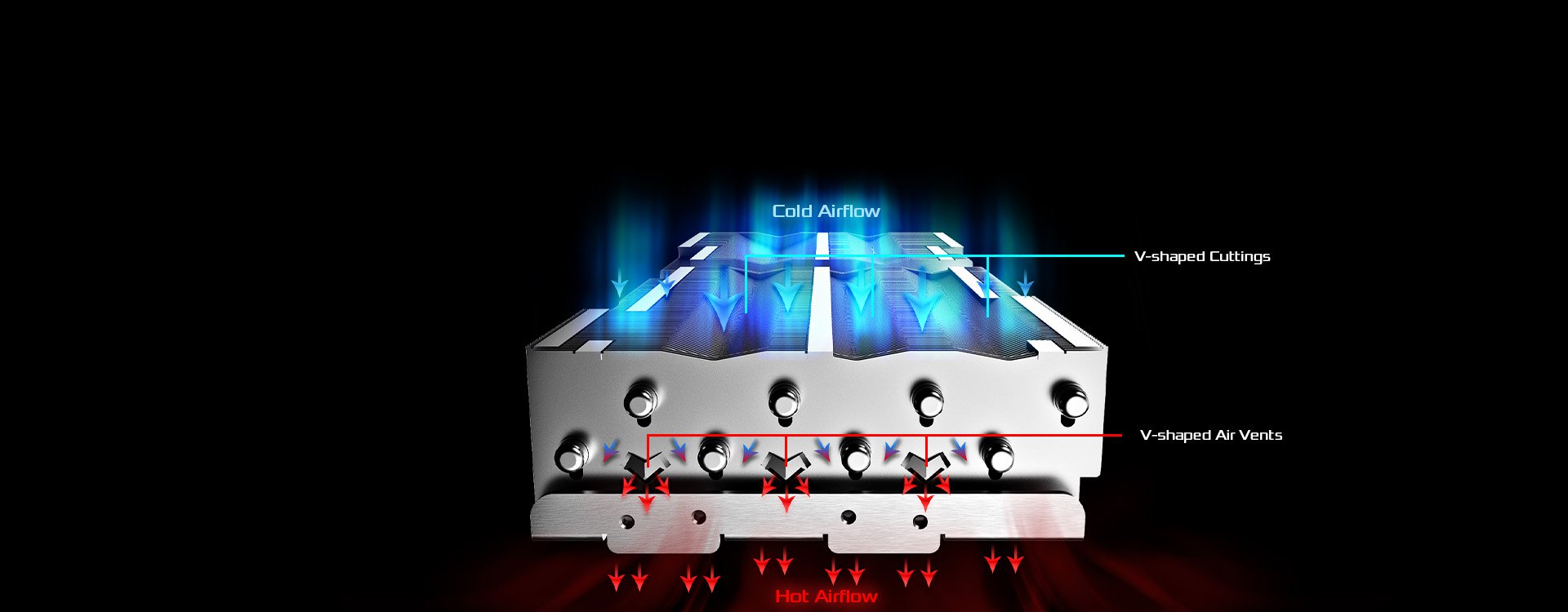

Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

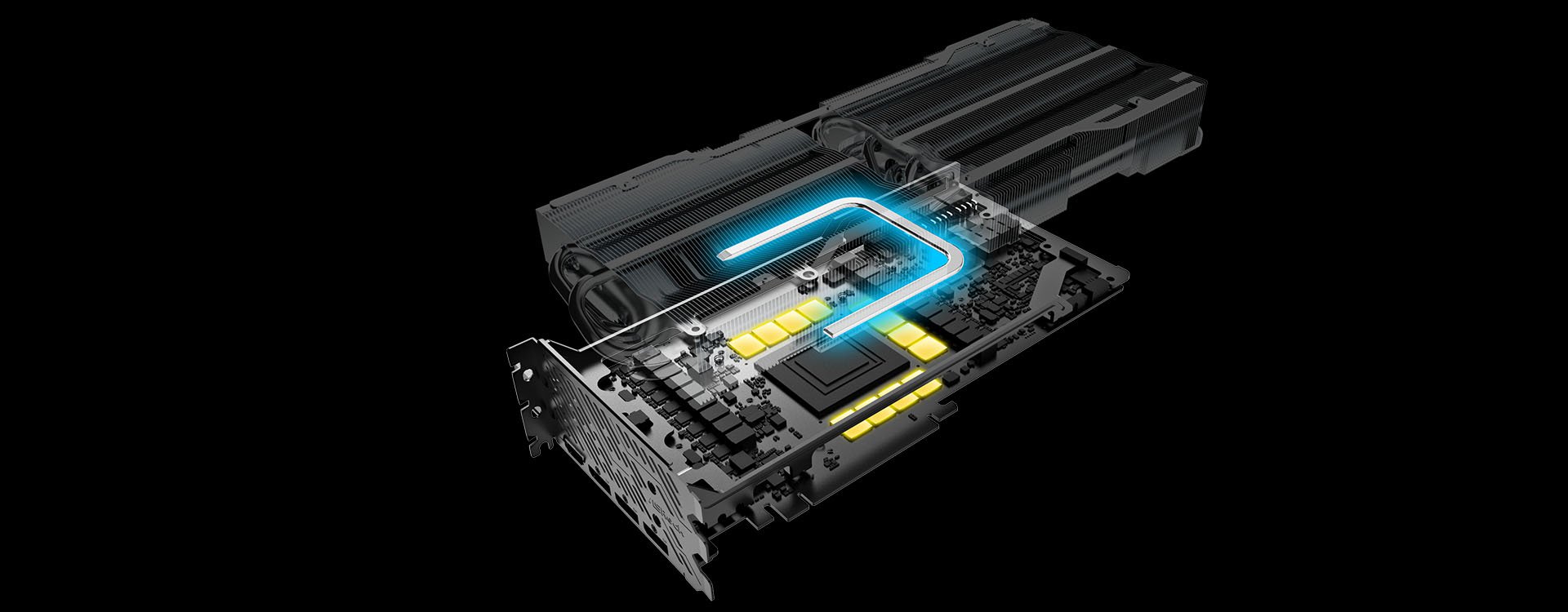

Memory Heatpipe
Designed to enhance and balance the temperature and heat dissipation for the video memory.

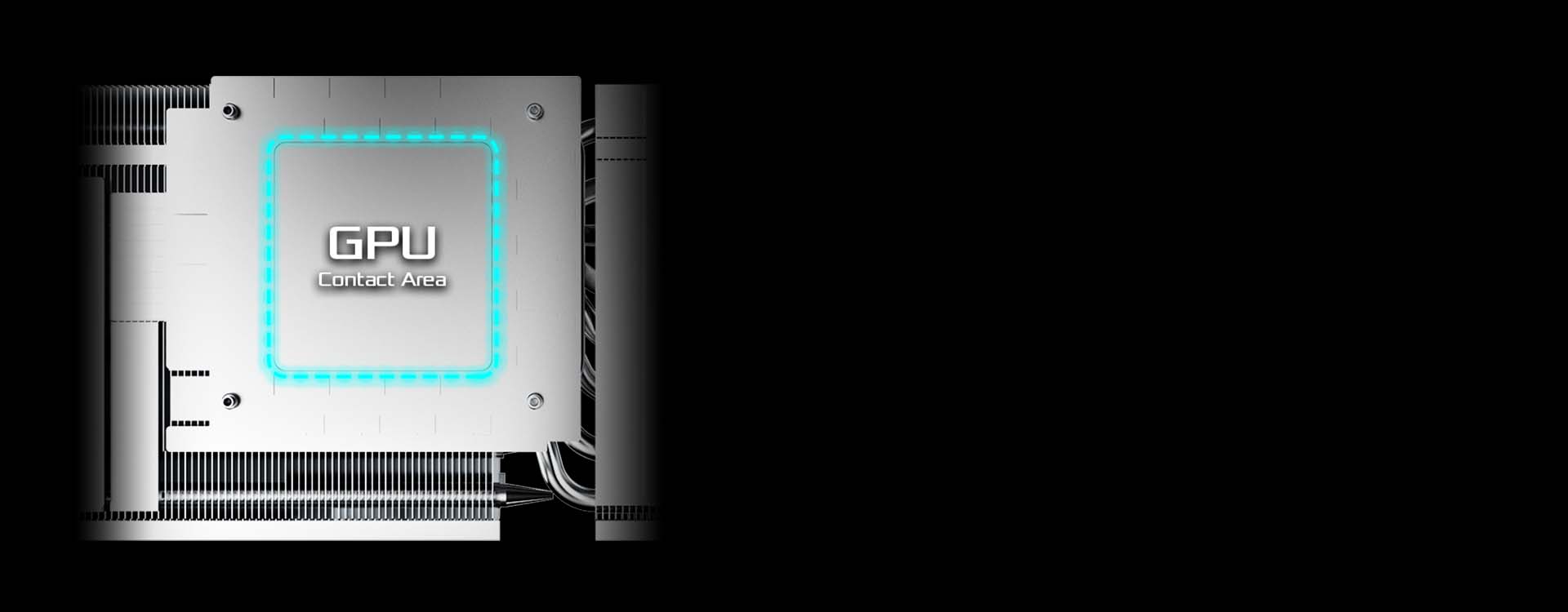

Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

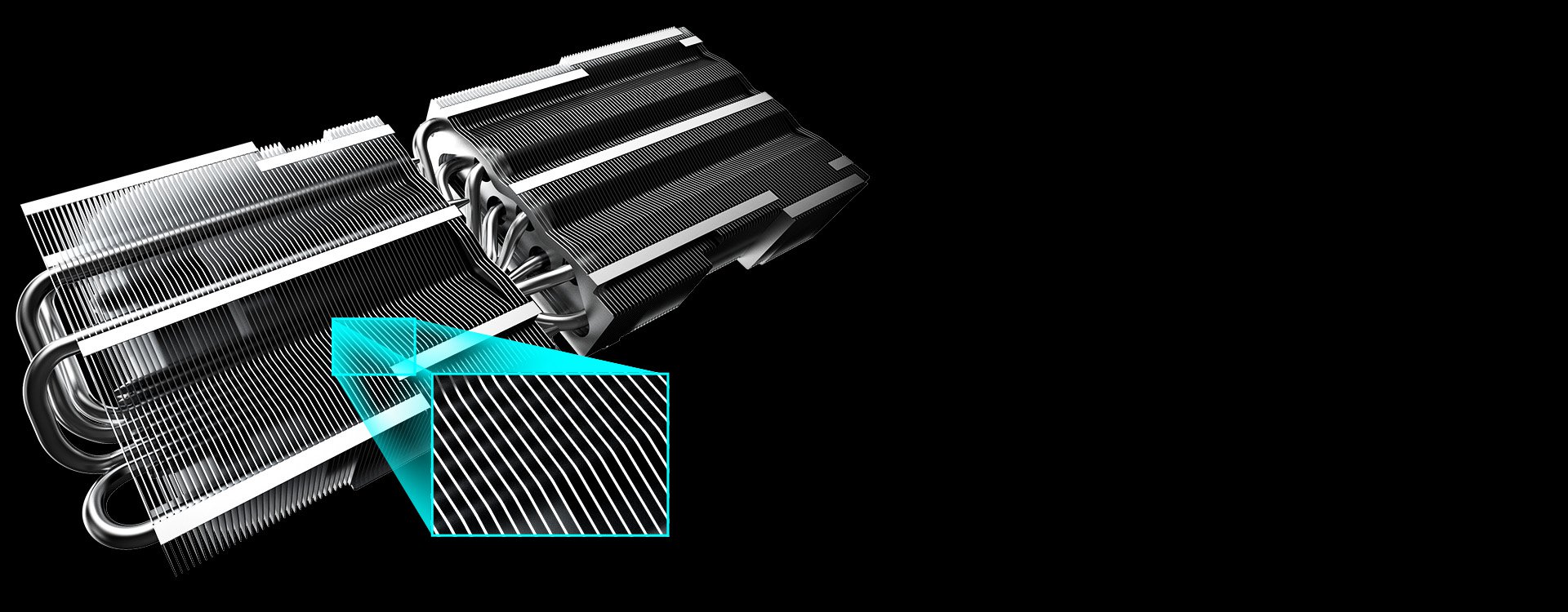

High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

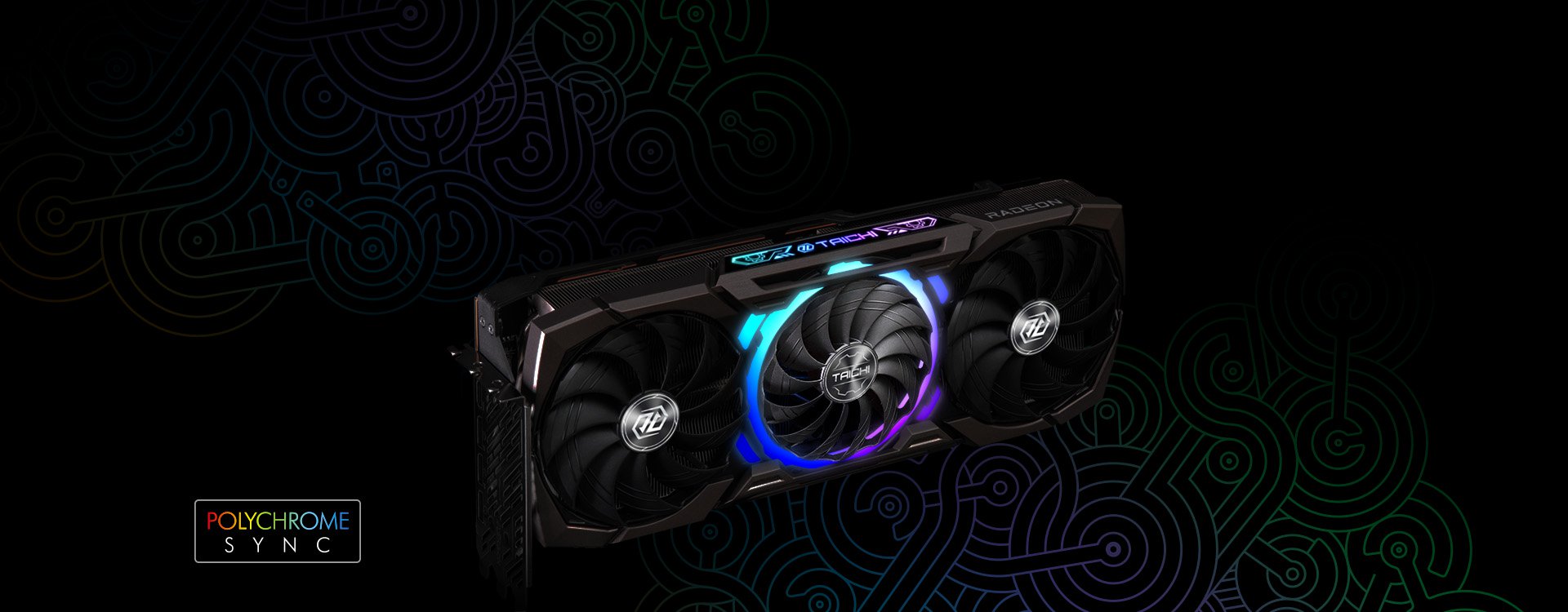

Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

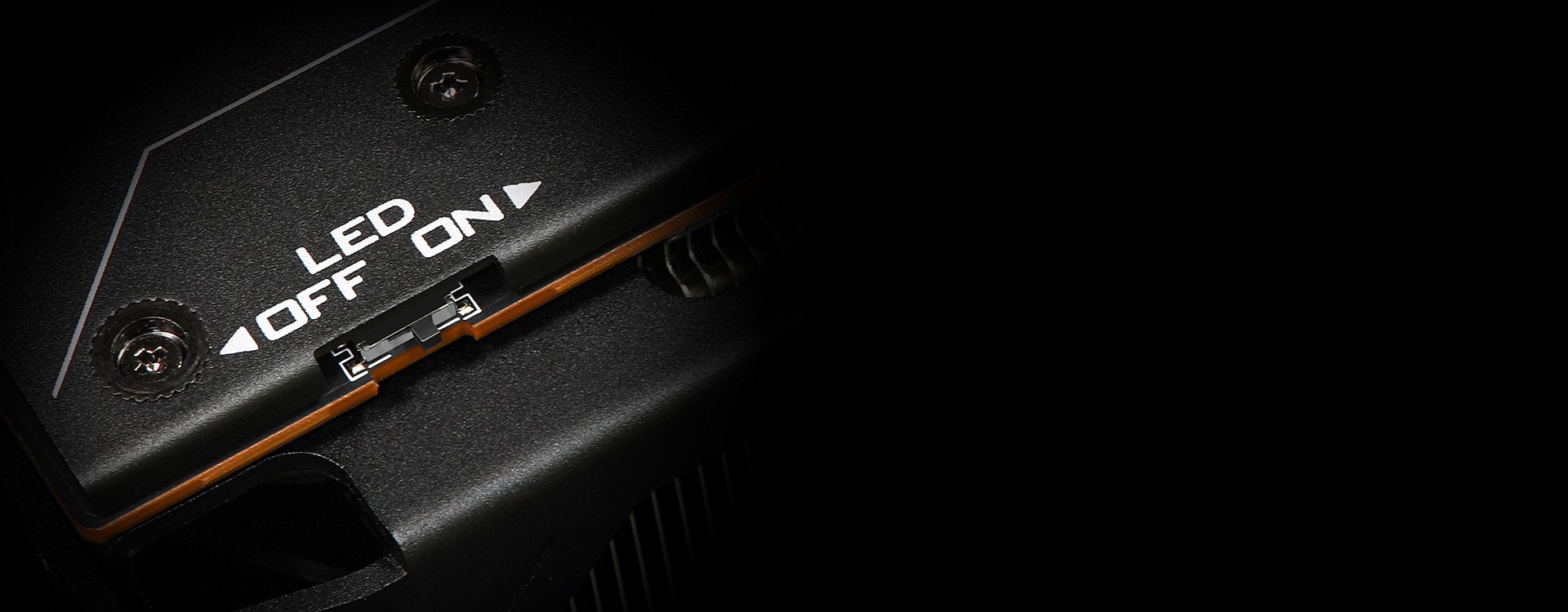

LED On/Off Switch
On or Off? Switch as You Want.
You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.
ARGB Pin-header
More ARGB, More Fancy.
With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

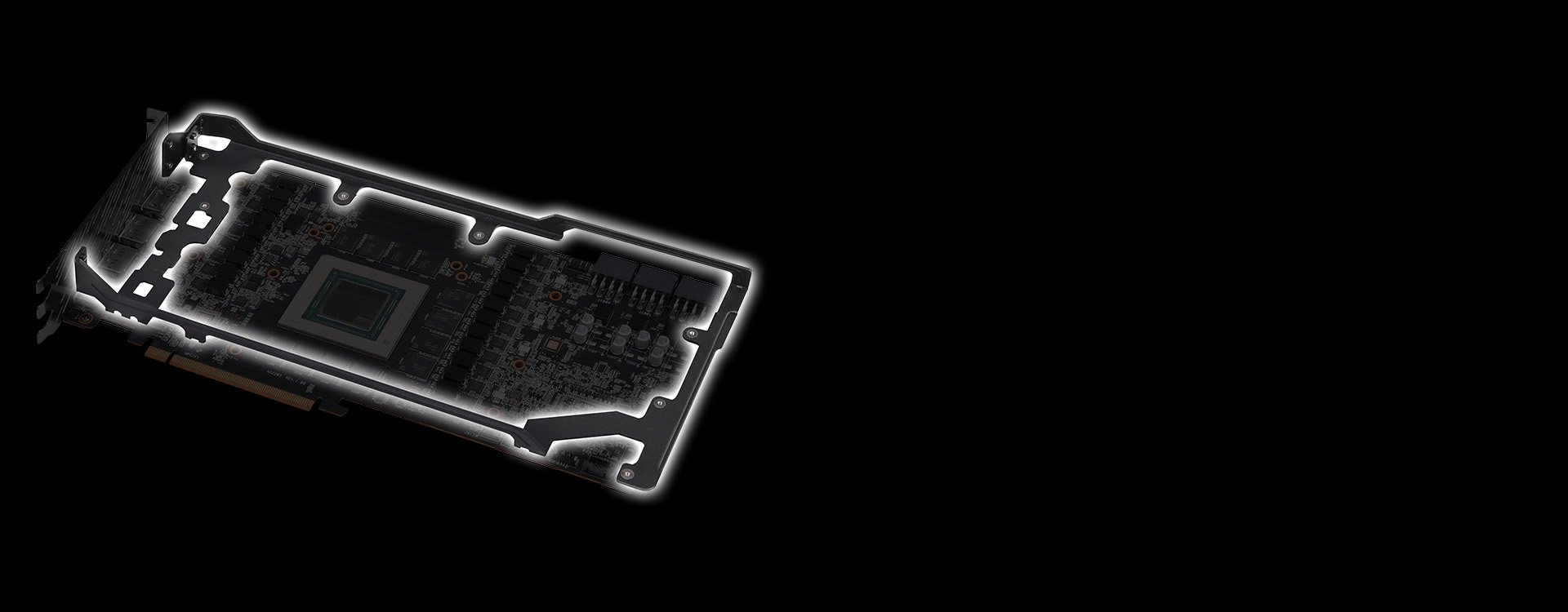

Reinforced Metal Frame
Be solid. No sag.
Enhances the structure to prevent the PCB from being bent.
ARGB Backplate
Shining, Solid, Cool.
Designed for elegancy and to avoid PCB bending. The brand new ARGB light makes the graphic card more shining in visual.

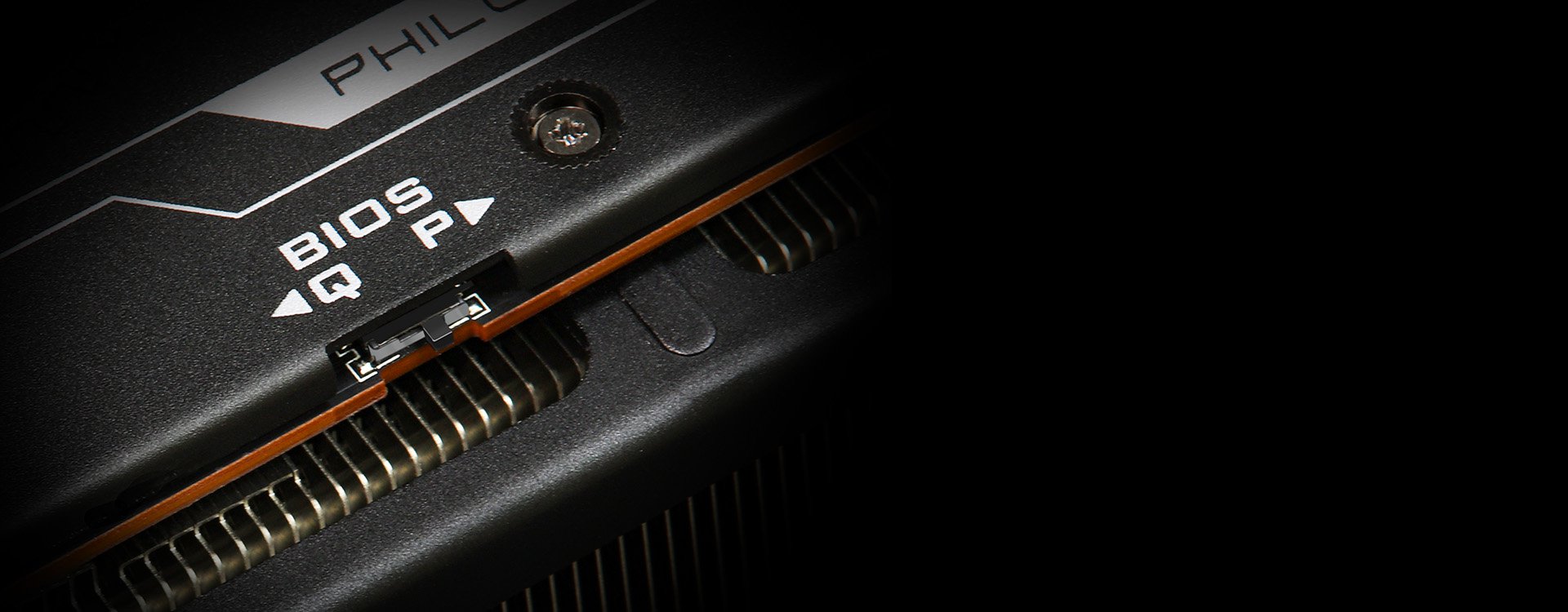

Dual BIOS
Dual BIOS design allows users choose preferred setting by switching between the P(Performance) BIOS and Q(Quiet) BIOS.
*Please make sure the system is powered off when you switch between P(Performance) BIOS and Q(Quiet) BIOS.

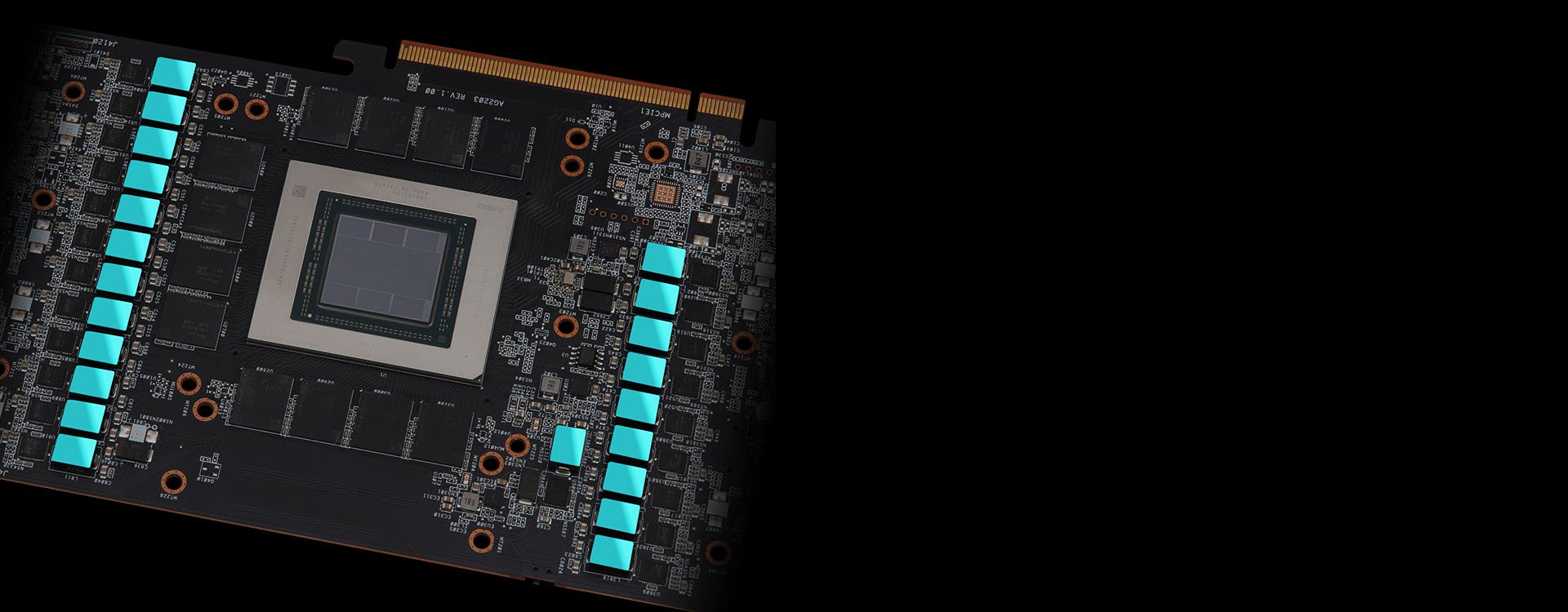

22 Power Phase Design
More Power Phase Equipped to Deliver More Sufficient Power.
Featuring 22 power phases with sturdy components to raise maximum current to GPU and memory to offer enhanced performance.
![SAV [0 Header-Hairline]](https://www.asrock.com/Graphics-Card/features/SAV.png)
Japanese SP-Cap
![SAV [Japanese SP-Cap]](https://www.asrock.com/Graphics-Card/features/SAV-JapanesePOSCAP.jpg)
With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.
SPS (Smart Power Stage)
![SAV [SPS]](https://www.asrock.com/Graphics-Card/features/SAV-SPS.jpg)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.
Premium 100A Power Choke
![SAV [Premium 100A Power Choke]](https://www.asrock.com/Graphics-Card/features/SAV-60APowerChoke.jpg)
Compared to traditional chokes, ASRock’s premium 100A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
![SAV [2oz Copper PCB]](https://www.asrock.com/Graphics-Card/features/SAV-2oz.jpg)
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
![SAV [Matte Black PCB]](https://www.asrock.com/Graphics-Card/features/SAV-MattePCB.jpg)
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock’s high-end graphics card.
High Density Glass Fabric PCB
![SAV [High Density Glass Fabric PCB]](https://www.asrock.com/Graphics-Card/features/SAV-HDPCB.jpg)
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
ASRock Tweak 2.0
Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
Graphics Card Stand
The bundled stand helps to eliminate GPU sag by supporting your graphics card.
Option 1: Support the graphics card at its bottom side.
Option 2: Support the graphics card with a bundle screw* fastened.
*The bundle fasten screws are only for ASRock Radeon RX 7900 Taichi and Phantom Gaming series graphics cards.
Note: To prevent the possible damage, please remove the graphics card stand when you transport the system.
Note: To prevent the possible damage, please remove the graphics card stand when you transport the system.
Experience unprecedented performance, visuals, and efficiency at 4K and beyond with AMD Radeon™ RX 7000 Series, the world’s first gaming GPUs powered by AMD RDNA™ 3 chiplet technology. Immerse yourself in breathtaking visuals with the pinpoint color accuracy of AMD Radiance Display™ Engine and boost frame rates with AMD FidelityFX™ Super Resolution and Radeon™ Super Resolution upscaling technologies.1,2 To unlock even more performance, combine AMD Radeon™ RX 7000 Series graphics and compatible AMD Ryzen™ processors to activate AMD smart technologies.
BREAKTHROUGH PERFORMANCE
AMD Radeon™ RX 7000 Series graphics cards set a new standard for ultra-enthusiast class gaming performance. Featuring advanced AMD RDNA™ 3 compute units, blazing fast clock speeds, and chiplet technology to enable fluid, high-refresh rate gaming experiences. Breakthrough new levels of performance with up to 24GB of GDDR6 memory and 2nd generation AMD Infinity Cache™ to deliver an incredible experience at 4K and beyond.
BREATHTAKING VISUALS
Discover new levels of fidelity and ultra-fast gameplay with High-Performance Rendering, a combination of compute-based AMD FideltyFX™ features and upscaling technologies, to deliver world-class visuals with remarkable performance. Further immerse yourself with the AMD Radiance Display™ Engine and DisplayPort™ 2.1 to experience up to 68 billion colors at up to 8K 165Hz.
BETTER TOGETHER
Combine AMD Radeon™ RX 7000 Series graphics cards and AMD Ryzen™ processors to activate AMD smart technologies3. You can unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon™ RX 7000 Series GPU with the AMD Software: Adrenalin Edition™ application, featuring bulletproof drivers, for the best PC gaming experiences.
UPSIZE PERFORMANCE.MAXIMIZE FIDELITY
AMD FidelityFX™ Super Resolution technology1 takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games.
AMD Radeon™ Super Resolution (RSR)2 leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.
AMD Radeon™ Super Resolution (RSR)2 leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.
| Brand | ASRock |
|---|---|
| Series | Taichi |
| Model | RX7900XTX TC 24GO |
| Interface | PCI Express 4.0 |
|---|
| Chipset Manufacturer | AMD |
|---|---|
| GPU Series | AMD Radeon RX 7000 Series |
| GPU | Radeon RX 7900 XTX |
| Game Clock | 2510 MHz |
| Boost Clock | 2680 MHz |
| Stream Processors | 6144 Stream Processors |
| Memory Size | 24GB |
|---|---|
| Memory Interface | 384-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
|---|---|
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
|---|---|
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 2.1 |
| Max Resolution | 7680 x 4320 |
|---|---|
| Cooler | Triple Fans |
| Thermal Design Power | 355W |
| Recommended PSU Wattage | 1000W |
| Power Connector | 3 x 8-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
|---|---|
| Max GPU Length | 345 mm |
| Slot Width | 3 Slots |
