Name: ASRock WRX80 Creator R2.0 WIFI Workstation Motherboard - (WRX80-CREATOR-R2-0) - Variety Infotech
SKU: WRX80-CREATOR-R2-0
Price: 66452.00 INR
Availability: InStock

ASRock WRX80 CREATOR R2.0 AMD Motherboard Ryzen Threadripper PRO 3000WX/5000WX Dual 10Gbe LAN IPMI Thunderbolt™ 4 Type-C

Feature

WRX80 Creator-Situation

Supports AMD Ryzen™ Threadripper™ PRO 3000WX/5000WX Series Processors
8 Power Phase Design, 105A SPS
14 Layer Server-Grade Low-Loss PCB
Supports DDR4 4533+(OC)
7 PCIe 4.0 x16
8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),
1 Hyper M.2 (PCIe Gen4 x4 & SATA3),
1 U.2 (PCIe Gen3 x4)
2 Thunderbolt™ 4 Type-C
5 USB 3.2 Gen2 (1 Front Type-C, 4 Rear),
6 USB 3.2 Gen1 (4 Front, 2 Rear)
7.1 CH HD Audio (Realtek ALC4050H+ALC1220),
Nahimic Audio
Dual 10Gb/s LAN, 1 Dedicated IPMI LAN
Intel^® 802.11ax (WiFi 6E) + Bluetooth

Optimized VRM Design

SPS (Smart Power Stage)

Asrock Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

7W/mK MOSFET Thermal Pads

This thermal pads are much more effective than normal pads. With a 7 watt/mK thermal conductivity it is able to effectively dissipate heat from MOSFET

14 Layer PCB

The 14 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it’s able to support the latest memory modules with most extreme memory performance!

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Optimized VRM Design

Composite VRM Heatsink

It is equipped with a composite VRM heatsink combining dual fans, aluminum fin array and heat pipe for maximum heat dissipation.

Server-Grade Low-Loss PCB

The server grade PCB prevents PCB bending and improves signal integrity, giving higher PCIe 4.0 and memory performance as well as system stability, giving a reliable and long-lasting system without any compromise.

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

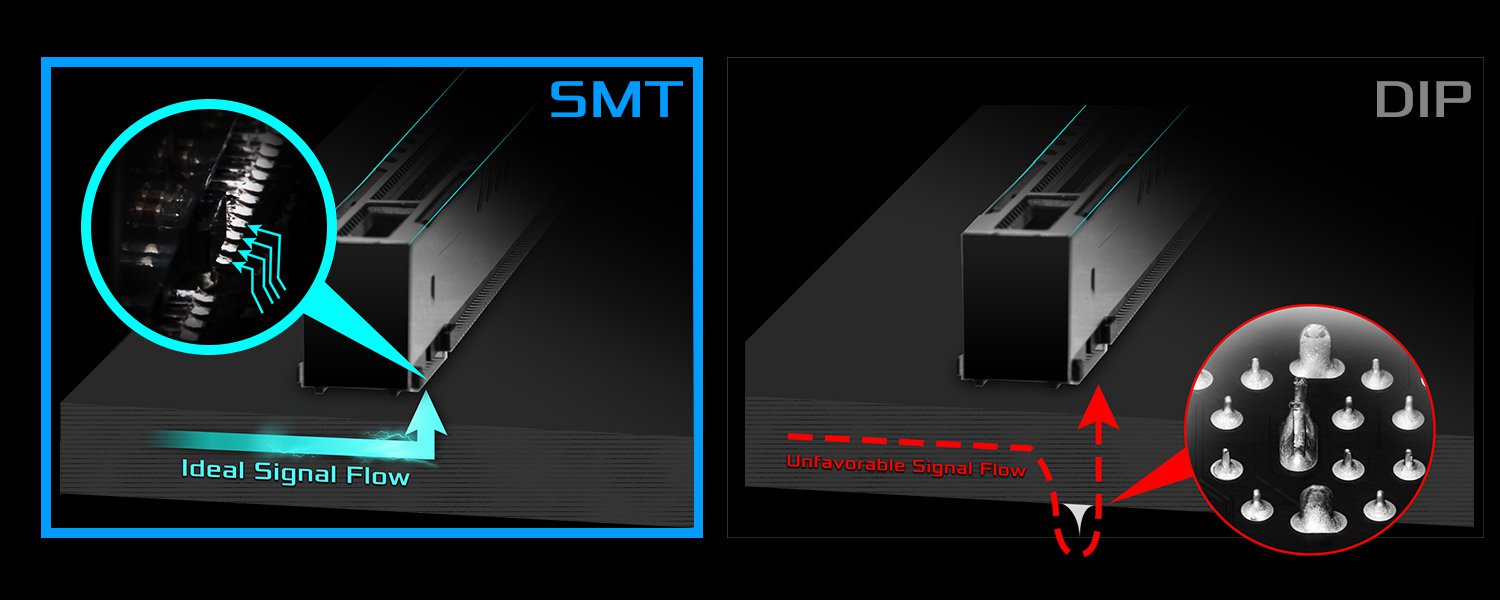

PCIe Gen4 with Surface Mount Technology

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 4.0 standard.

Thunderbolt Technology

Thunderbolt™ 4/USB4 Type-C

Thunderbolt™ 4/USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Fast Charging Technology

Enjoy the superfast charging rate, up to 9V@3A 27W with the next generation PD 3.0!

Nahimic Audio

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer

Ultimate Gaming Experience

●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified

accessories to create their own unique lighting effects

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

*The availability of Wi-Fi 6E (6GHz) may vary between different countries.
Wi-Fi 6E (6GHz band) will be supported by Microsoft^® Windows^® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.

Model	WRX80 Creator R2.0
Unique Feature	ASRock USB 3.2 Gen2 – ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) – ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium Power Choke – 105A Dr.MOS – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) – Matte Black PCB – High Density Glass Fabric PCB – 14 Layer PCB – 2oz Copper PCB Server-Grade Low-Loss PCB Dual Marvell (Aquantia) 10GbE LAN 802.11ax Wi-Fi 6E ASRock Auto Driver Installer ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	Supports AMD Socket sWRX8 for AMD Ryzen™ Threadripper™ PRO 5000WX and 3000WX Series Processors Intersil Digital PWM 8 Power Phase design Supports ASRock Hyper BCLK Engine III
Chipset	AMD WRX80
Memory	Eight Channel DDR4 Memory Technology 8 x DDR4 DIMM Slots Supports DDR4 ECC & non-ECC, buffered and un-buffered memory (U-DIMM) up to 4400+(OC) Supports DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, buffered and un-buffered memory (R-DIMM and 3DS R-DIMM) Max. capacity of system memory: 2048 GB 15μ Gold Contact in DIMM Slots
BIOS	256Mb AMI UEFI Legal BIOS with GUI support Supports “Plug and Play” ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
Graphics	Aspeed AST2500 BMC Controller Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
Audio	7.1 CH HD Audio (Realtek ALC4050H+ALC1220) Premium Blu-ray Audio support Supports Surge Protection NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) Pure Power-In Direct Drive Technology PCB Isolate Shielding Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Gold Audio Jacks 15μ Gold Audio Connector Nahimic Audio
LAN	2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113CS) Support Wake-On-LAN Supports PXE 1 x Dedicated IPMI (ASPEED AST2500) Supports iKVM and vMedia
Wireless LAN	802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ax Supports Dual-Band 2×2 160MHz with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth + High speed class II Supports MU-MIMO
Slots	CPU: 7 x PCIe 4.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE5/PCIE7 at x16; PCIE4/PCIE6 at x8) Chipset: 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Supports AMD 4-Way CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ 15μ Gold Contact in VGA PCIe Slots (PCIE1, PCIE2,PCIE3, PCIE5 and PCIE7)
Storage	CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 8 x SATA3 6.0 Gb/s Connectors 1 x U.2 Connector
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Connector	1 x SPI TPM Header – 1 x COM Port Header – 1 x Intelligent Platform Management Bus Header – 1 x PSU SMBus Header – 1 x BMC SMBus Header – 1 x Auxiliary Panel Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header – 2 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin) – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 1 x Right Angle Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) – 1 x Non Maskable Interrupt Button Header – 1 x Dr. Debug with LED – 1 x Power Button with LED – 1 x Reset Button
Rear Panel I/O	– 2 x Antenna Ports – 1 x D-Sub Port – 1 x Optical SPDIF Out Port – 2 x USB 4.0 Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol) (Supports ESD Protection) – 2 x Mini DisplayPort Input Ports(For Thunderbolt) – 4 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) – 1 x RJ45 Dedicated IPMI LAN Port with LED (ACT/LINK LED and SPEED LED) – 1 x Clear CMOS Button – HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Software and UEFI	Software ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC UEFI ASRock Full HD UEFI ASRock Instant Flash
Accessories	Quick Installation Guide 4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 2 x Screws for M.2 Sockets 2 x Standoffs for M.2 Sockets
Hardware Monitor	Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, PREM VDDCR_SOC, +1.8V
Form Factor	EATX Form Factor: 12.0-in x 10.7-in, 30.5 cm x 27.2 cm 14 Layer PCB 2oz Copper PCB
OS	Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) CEC Tier II ready
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Weight	2.45 kg
Dimensions	27.2 × 30.5 × 3.3 cm
Brand	ASROCK
Color	Black
Product type	Normal
Motherboard size	E-ATX
Ram type	DDR4
Socket	sWRX8
Warranty	3 Years
Ean code	7598484837929

Reviews

There are no reviews yet

Add a review

ASRock WRX80 Creator R2.0 WIFI Workstation Motherboard - (WRX80-CREATOR-R2-0)

Rating*

0/5

* Rating is required

Your review

* Review is required

Name

* Name is required

* Email is required

Q & A

Ask a question

There are no questions yet

Need help? Call us:

AMD

Intel

Asus

Gigabyte

MSI

ASRock

Memory

Shop By Brand

AMD Series

Nvidia Series

Shop By Brand

Hard Disk

Solid State Drive

AIO Liquid Cooler

Air Cooler

Shop By Brand

SMPS Rating

SMPS Modularity

Shop By Brand

Case Size

Case Type

Shop By Brand

Panel Type

Monitor Series

Shop By Brand

ASRock WRX80 Creator R2.0 WIFI Workstation Motherboard – (WRX80-CREATOR-R2-0)

Have any Questions?

Feature

Optimized VRM Design

Optimized VRM Design

PCIe Gen4 with Surface Mount Technology

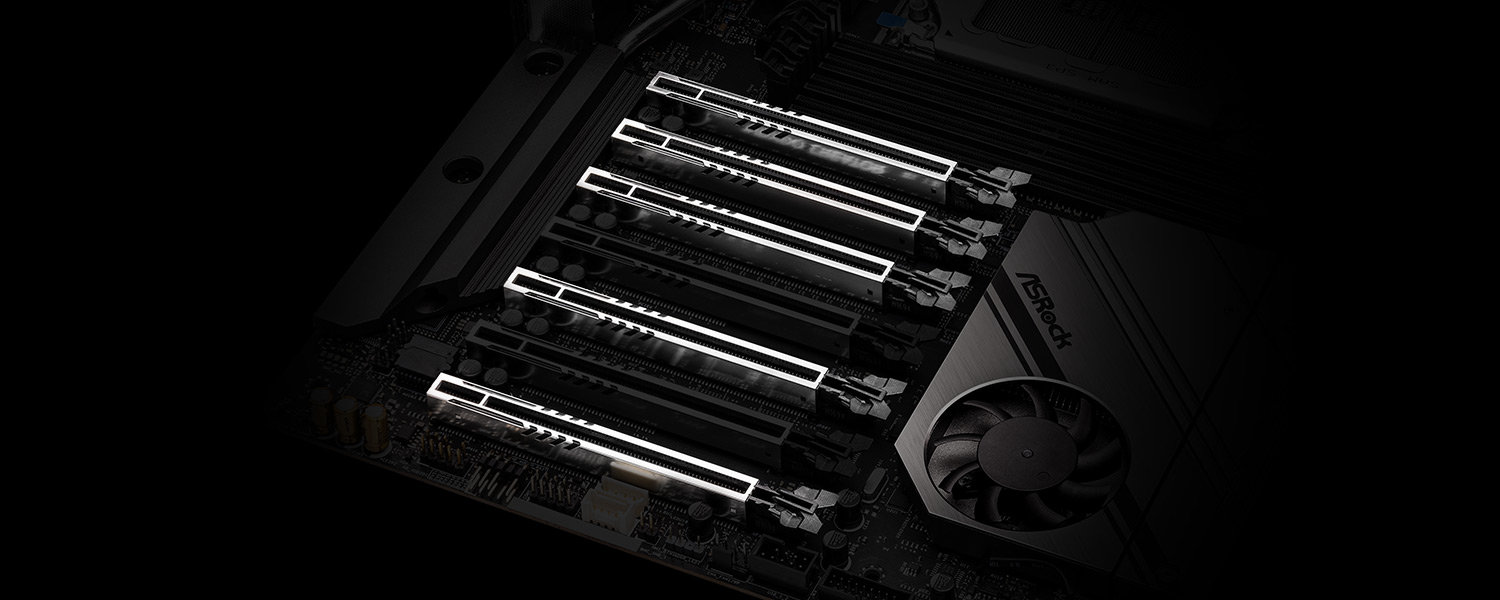

5 x PCIe Gen4 x16

Thunderbolt Technology

Nahimic Audio

POLYCHROME RGB

Dual 10GbE LAN

Wi-Fi 6E 802.11ax

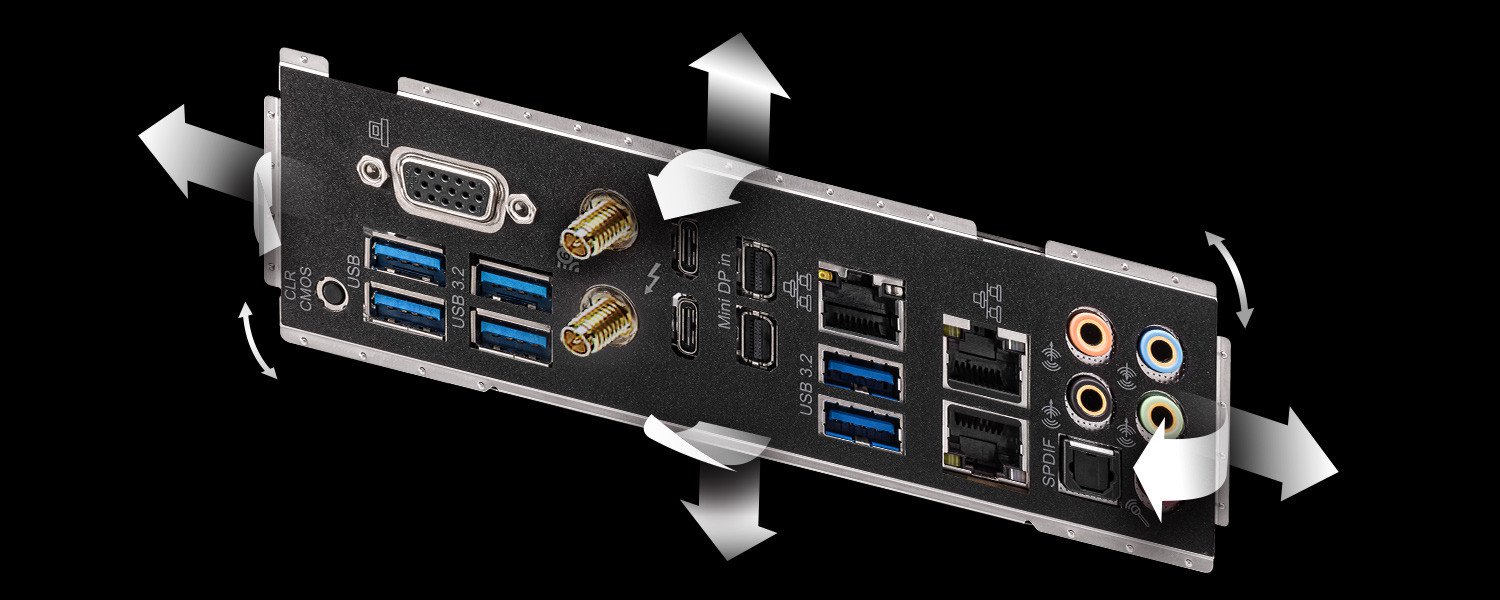

Flexible Integrated I/O Shield

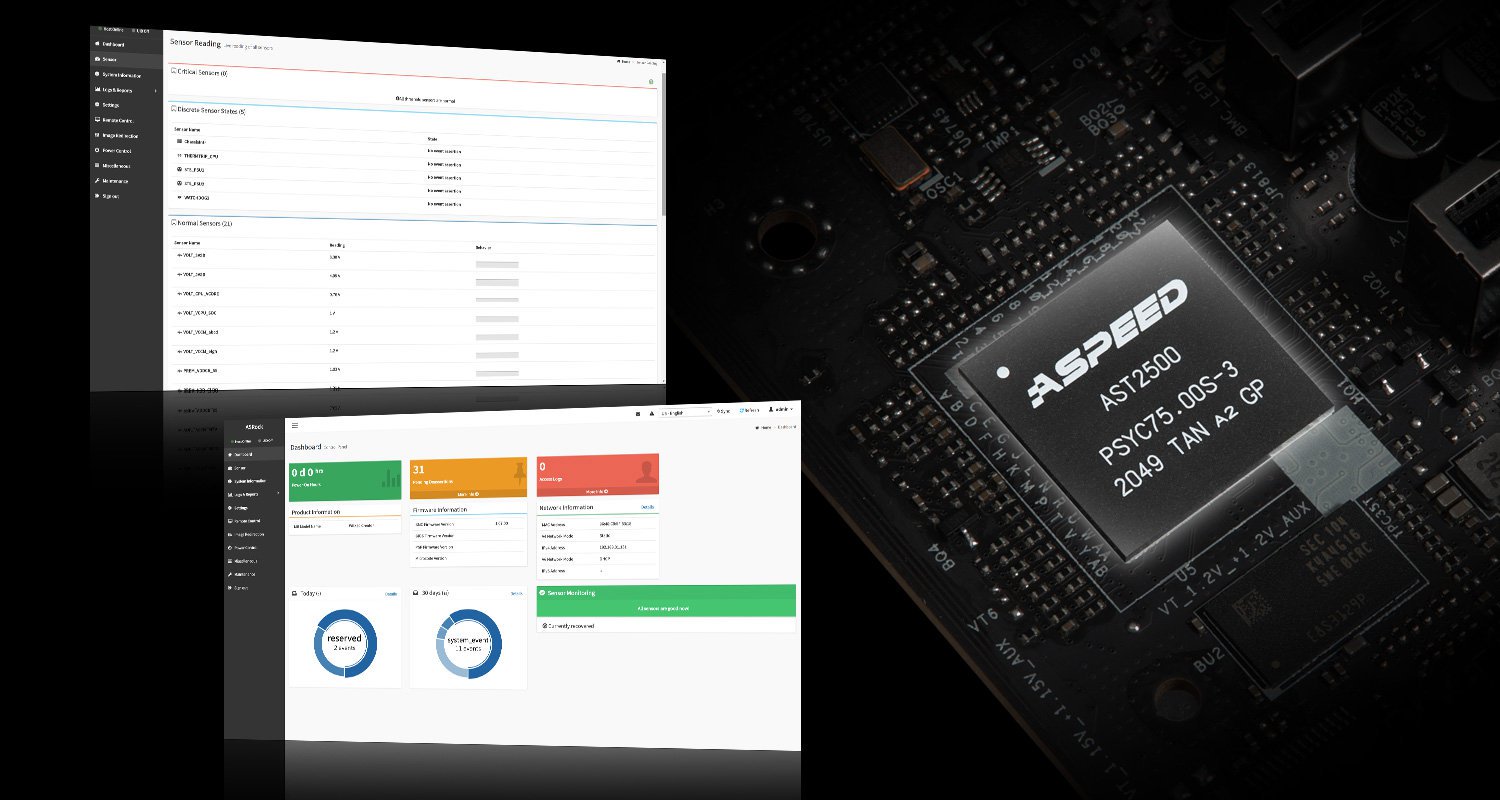

Aspeed® AST2500 BMC Controller
