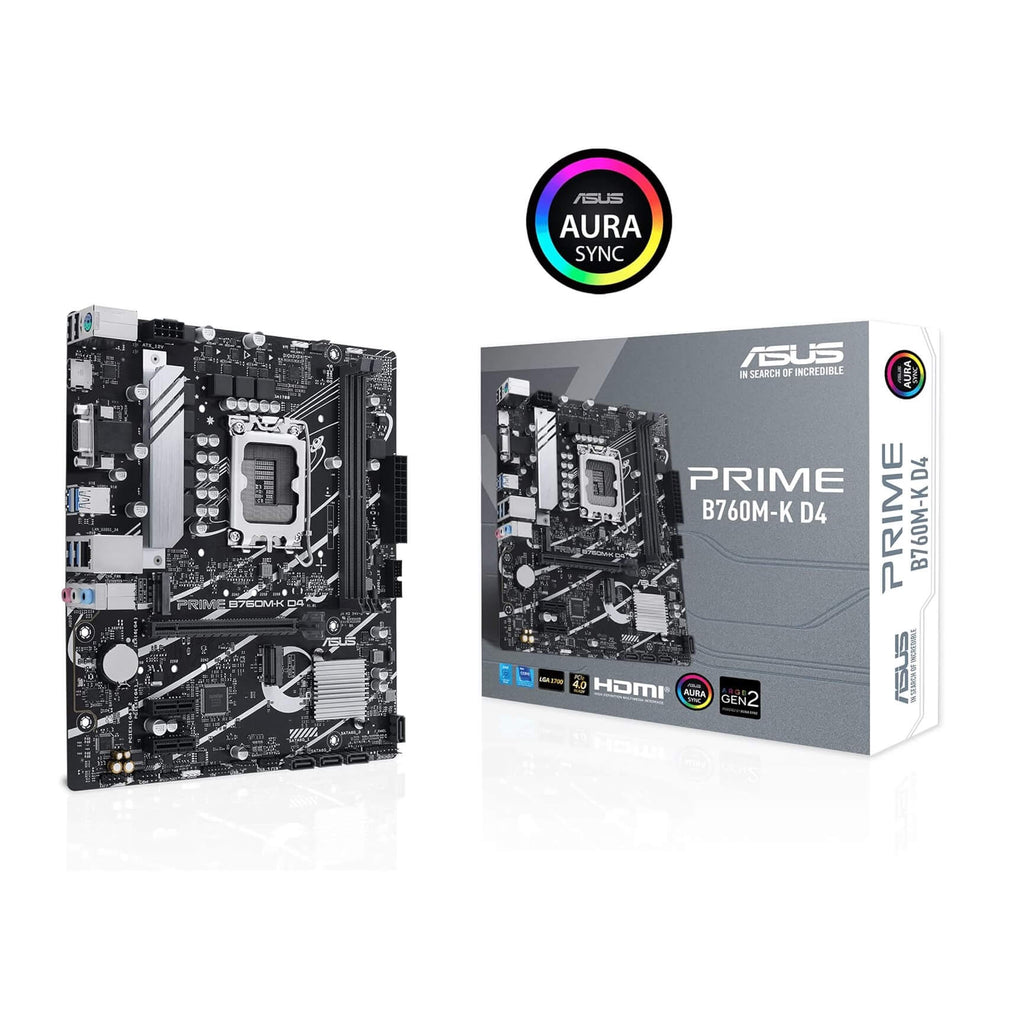

ASUS Prime B760M-K D4 Intel B760 LGA 1700 14th Gen microATX Motherboard with PCIe 4.0
Original price was: ₹15,000.00.₹7,899.00Current price is: ₹7,899.00. (Inclusive of GST)
- Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 1 Type-A, front USB 3.2 Gen 1
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Guaranteed Safe Checkout
🔒 Secure payments powered by Cashfree– India’s trusted payment gateway.
Easy EMI options available on credit cards.
For domestic buyers, orders are shipped through registered domestic courier companies and /or speed post only. Orders are shipped within 3-5 working days or as per the delivery date agreed at the time of order confirmation and delivering of the shipment subject to Courier Company/post office norms. Variety Infotech is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 3-5 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. Delivery of all orders will be to the registered address of the buyer as per the credit/debit card only at all times (Unless specified at the time of Order). Variety Infotech is in no way responsible for any damage to the order while in transit to the buyer. Variety Infotech is proud to use fast, easy, and efficient secure payments gateways. All major cards are accepted.
We offer an exchange only if the product is not working. All requests will be approved after verification.
Note: an Unboxing video is mandatory to initiate any kind of exchange with unboxing video no exchange will be considered
ASUS Prime B760M-K D4 Intel B760 LGA 1700 14th Gen microATX Motherboard with PCIe 4.0
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chocks for better cooling performance.
ProCool Connector
Proprietary connectors augment the motherboard’s link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
Here is the specifications table formatted into a clean, 2-column layout for the PRIME B760M-K D4.
ASUS PRIME B760M-K D4 Specifications
| Feature / Category | Details |
| Model | PRIME B760M-K D4 |
| Form Factor | Micro-ATX (mATX) — 9.6 in x 8.3 in (24.4 cm x 21.1 cm) |
| CPU Socket | Intel® Socket LGA1700 |
| Supported CPUs | Intel® Core™ 14th, 13th, & 12th Gen, Pentium® Gold, Celeron® |
| Boost Technologies | Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0 (depends on CPU) |
| Chipset | Intel® B760 |
| Memory Support | 2 x DIMM slots, Max. 64GB, DDR4 (up to 5333 OC MHz)
Dual Channel, Non-ECC, Un-buffered, Intel® XMP support |
| Graphics Outputs | 1 x HDMI® 2.1 (supports up to 4K@60Hz)
1 x VGA port |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (from CPU)
2 x PCIe 4.0 x1 slots (from B760 Chipset) |
| M.2 Storage | 2 x M.2 slots (Key M), type 2242/2260/2280 (both support PCIe 4.0 x4 mode) |
| SATA Storage | 4 x SATA 6Gb/s ports (supports SATA RAID 0/1/5/10 via Intel® RST) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Rear USB Ports | 4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A |
| Front USB Headers | 1 x USB 3.2 Gen 1 header (supports 2 extra USB 3.2 Gen 1 ports)
2 x USB 2.0 headers (support 3 extra USB 2.0 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC
Up to 24-Bit/192 kHz playback, Audio Shielding, Dedicated PCB layers |
| Rear I/O Ports | 4 x USB 3.2 Gen 1
2 x USB 2.0
1 x HDMI
1 x VGA
1 x 2.5Gb LAN
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port |
| Internal Connectors | 1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
1 x 24-pin Main Power
1 x 8-pin +12V Power
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio (AAFP)
1 x S/PDIF Out
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X Protection III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O
ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot
Aura Sync: RGB and Addressable Gen 2 headers
Thermal & Power: VRM heatsink design, ProCool connector |
| Software & BIOS | Armoury Crate (Aura Sync, Fan Xpert, Power Saving), AI Suite 3, ASUS CPU-Z
128 Mb Flash ROM, UEFI AMI BIOS (CrashFree BIOS 3, EZ Flash 3) |
| Supported OS | Windows® 11, Windows® 10 (64-bit) |
| Included Accessories | 2 x SATA 6Gb/s cables
1 x I/O Shield
2 x M.2 anchors
1 x User guide |
| Weight | 1 kg |
|---|
ASUS Prime B760M-K D4 Intel B760 LGA 1700 14th Gen microATX Motherboard with PCIe 4.0
