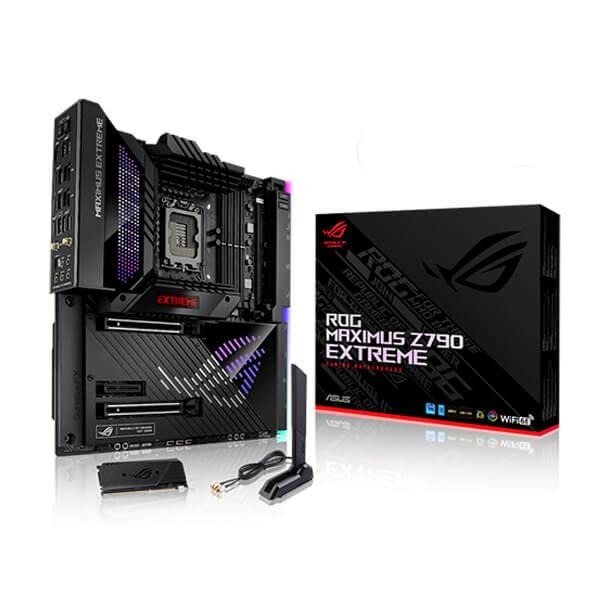

Asus ROG Maximus Z790 Extreme (Wi-Fi) Motherboard Supports Intel 12th, 13th & 14th Gen Processors

AI OVERCLOCKING

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

TEAMED POWER ARCHITECTURE

Today’s CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current while maintaining exemplary thermal performance.

MEMORY

DDR5 DOMINATION

ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Maximus Z790 Extreme, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

COOLER BY DESIGN

1.VRM and aluminum I/O heatsink: A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.

2.High-conductivity thermal pads: Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink. For future maintenance, a replacement thermal pad can also be found in the package.

Solid metal backplate: A plate of electro-galvanized metal strengthens the spine of the ROG Maximus Z790 Extreme to prevent bending.

3.Chipset heatsink: A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.

4.M.2 heatsinks and backplates: Large heatsinks and backplates provide extensive surface area to keep mounted M.2 drives cool.

PCIE 5.0 EXPANSION SLOTS

Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.

PCIE 5.0 STORAGE

Three Onboard M.2 Slots

The ROG Maximus Z790 Extreme features three onboard M.2 slots, one of which is PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces.

PCIE 5.0 ROG DIMM.2

The ROG DIMM.2 module allows you to easily mount two M.2 drives next to the memory slots, where its large heatsinks convect directly into the path of chassis airflow.

ANIME MATRIX LED DISPLAY

This innovative display features an RGB grid of mini LEDs that can be programmed with custom lighting designs and unique animations. For added immersion, sound-triggered effects can be selected to add visualizations to live audio or even pulse to the rhythm of a person’s voice.

LIVEDASH COLOR OLED

The ROG Maximus Z790 Extreme includes LiveDash, a built-in 2-inch color OLED panel that adds life and flavor to the center of your rig. During startup, the display shows traditional POST codes to help with monitoring and troubleshooting, and while the system is running it can be programmed to show system metrics, such as CPU frequency and temperature. But if you want to add a personal touch, the default GIF can be replaced with a custom image or animation.
