Colorful BATTLE-AX B760M-PLUS WIFI D5 V20 Intel mATX Motherboard
PLEASE VERIFY PRICE AND STOCK BEFORE ORDERING
- Adopting 12+1+1 phase enhanced power supply (Dr MOS 55A)
- Provide 3 PCIe 4.0 x4 M.2 SSD slots
- Provide 1 USB 3.2 Gen 2 Type-C and 2 USB 3.2 Gen 1 Type-A high-speed rear interfaces
- Equipped with Realtek 2.5G high-speed wired network card and AX101 WiFi 6 wireless network card, supporting Bluetooth 5.2
Original price was: ₹24,000.00.₹16,359.00Current price is: ₹16,359.00. (Inclusive of GST)
Guaranteed Safe Checkout
🔒 Secure payments powered by Cashfree– India’s trusted payment gateway.
Easy EMI options available on credit cards.
For domestic buyers, orders are shipped through registered domestic courier companies and /or speed post only. Orders are shipped within 3-5 working days or as per the delivery date agreed at the time of order confirmation and delivering of the shipment subject to Courier Company/post office norms. Variety Infotech is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 3-5 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. Delivery of all orders will be to the registered address of the buyer as per the credit/debit card only at all times (Unless specified at the time of Order). Variety Infotech is in no way responsible for any damage to the order while in transit to the buyer. Variety Infotech is proud to use fast, easy, and efficient secure payments gateways. All major cards are accepted.
We offer an exchange only if the product is not working. All requests will be approved after verification.
Note: an Unboxing video is mandatory to initiate any kind of exchange with unboxing video no exchange will be considered

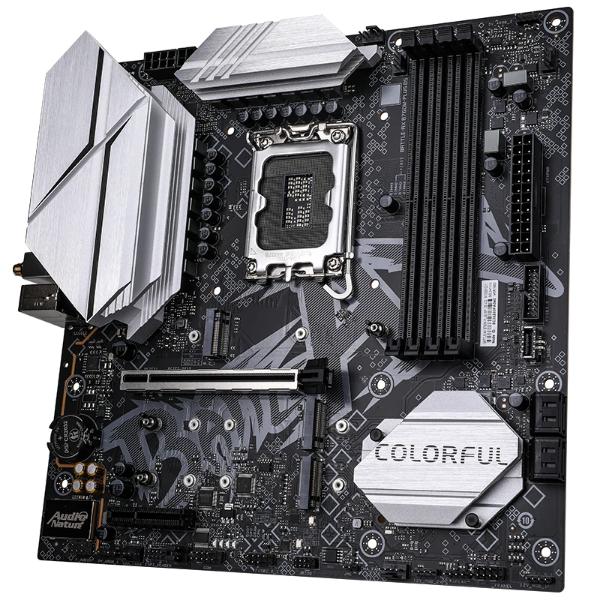

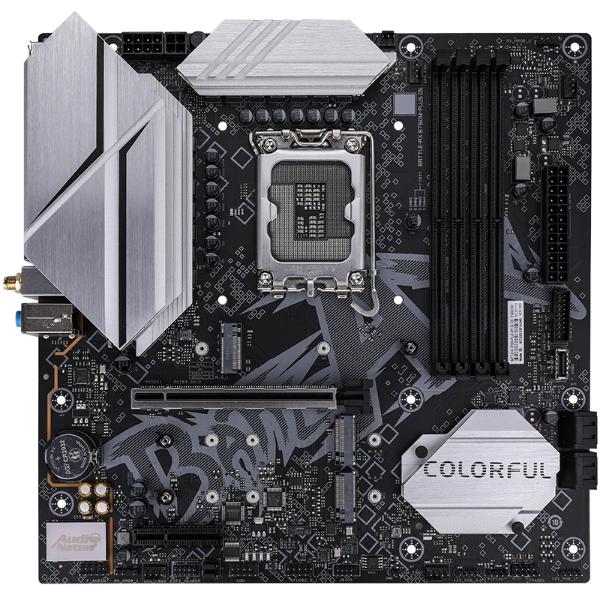

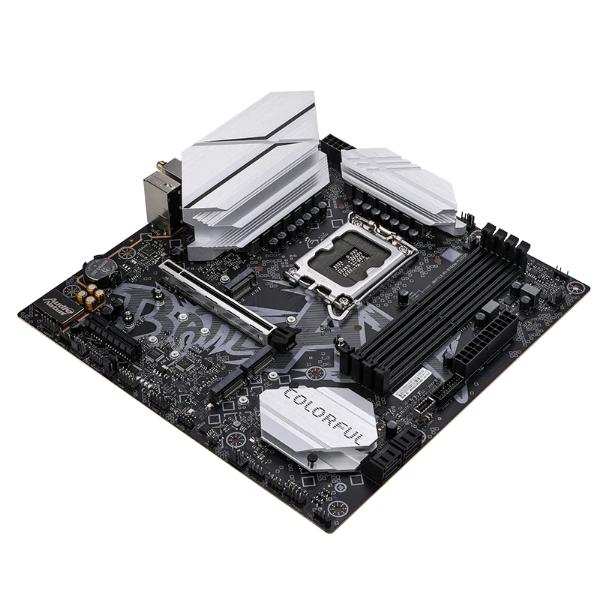

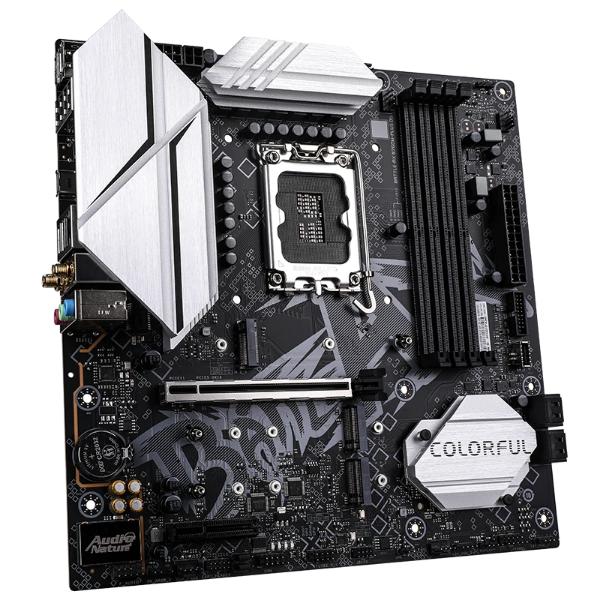

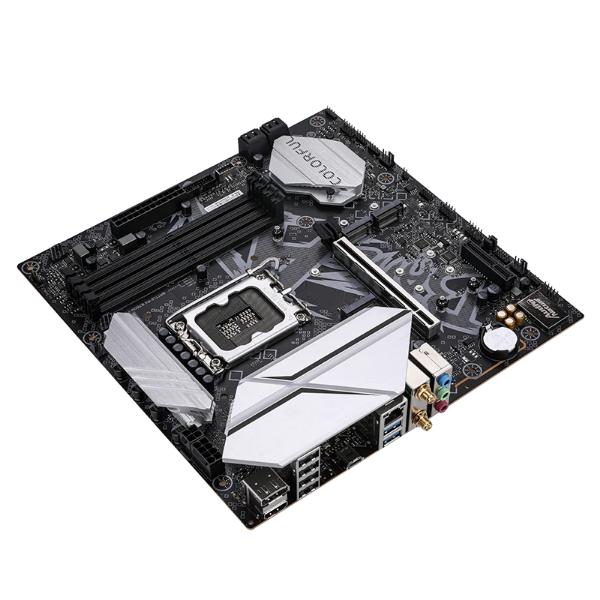

Colorful BATTLE-AX B760M-PLUS WIFI D5 V20 Intel Motherboard
Feature Highlights:
BATTLE-AX series customized heat dissipation armor
Adopting 12+1+1 phase enhanced power supply (Dr MOS 55A)
Provide 3 PCIe 4.0 x4 M.2 SSD slots
Provide 1 USB 3.2 Gen 2 Type-C and 2 USB 3.2 Gen 1 Type-A high-speed rear interfaces
Equipped with Realtek 2.5G high-speed wired network card and AX101 WiFi 6 wireless network card, supporting Bluetooth 5.2
Support iGame Center lighting effect control software, which can synchronously adjust the lighting effects of heat sinks, cooling fans, and memory
Six major protective technologies for more stable product operation
Strict testing of 200 processes ensures quality assurance
PCB atomization process fully upgraded
Specifications
| Model | BATTLE-AX B760M-PLUS WIFI D5 V20 |
|---|---|
| Product Series | BATTLE-AX series |
| Chipset | Intel B760 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) – DDR5-7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory – Intel is supported ® Extreme Memory Profile (XMP) memory technology – supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| Graphics Support | |
| SATA Ports | 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices – M.2_1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) – M.2_2 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) – M.2_3 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |

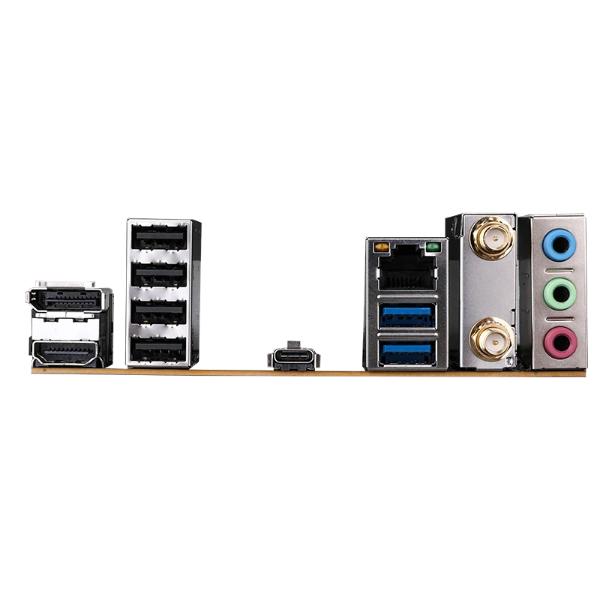

| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 2 Type-C interface -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×2.5G network interface -2×Wi Fi 6 antenna interfaces -3×Audio interfaces (audio input/output/microphone) On board : -1×CPU fan pin -3×System fan pins -1×Water-cooled pump pin -1×USB 2.0 pin expandable with 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable with 2 USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 1 Type-C slot expandable with 1 USB 3.2 Gen 1 Type-C interface -2×5V 3-pin ARGB pins -2×12V 4-pin RGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Clear CMOS jumper -1×COM port pin -1×BIOS burner pin -1×POST card pin -1×ME write protection jumper -1×RGB light effect control jumper |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable (Fan1 supports independent control, Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125BG 2.5Gbit network card, AX101 WiFi 6 wireless network card, Bluetooth 5.2 |
| Audio | Realtek ALC897 high fidelity decoding chip, supporting 5.1 channels |
| Configuration | M-ATX 245mm x 245mm |
| Weight | 1 kg |
|---|---|
| Brand | Colorful |
| Chipset | B760 |
| Motherboard series | Colorful Battle AX |
| Motherboard size | mATX |
| Ram type | DDR5 |
| Socket | LGA 1700 |
| Warranty | 3 Years |
