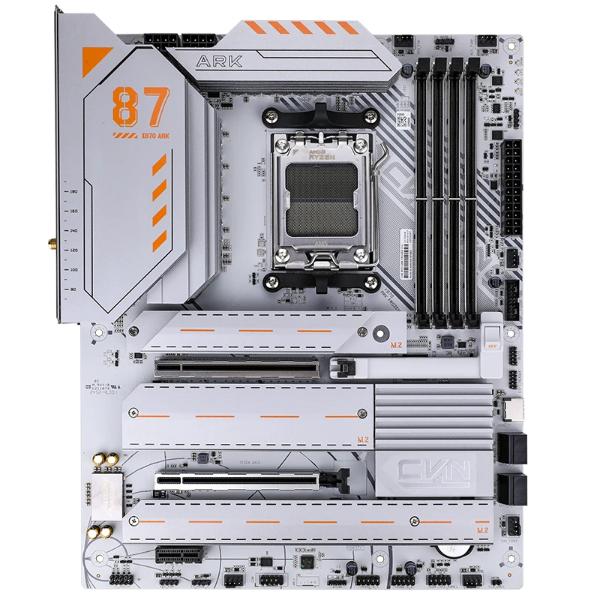

Colorful CVN X870 ARK Frozen V14 AMD AM5 ATX Motherboard
Original price was: ₹39,600.00.₹23,100.00Current price is: ₹23,100.00. (Inclusive of GST)
- Exclusive custom white motherboard for CVN series
- CVN series customized frost cooling armor, paired with fully covered condensing fins to enhance heat dissipation
- Adopting a 14+2+1 phase enhanced power supply design (Dr MOS 80A)
- Provide 2 PCIe 5.0 x4 M.2 SSD slots and 1 PCIe 4.0 x4 M.2 SSD slot
- Provide 1 rear USB4 40Gbps Type-C interface (supports video output, up to 4K 60Hz resolution)
- Provide 1 rear USB 3.2 Gen 2 10Gbps Type-C high-speed rear interface
- Equipped with Realtek 5G high-speed wired network card and MT7925 WiFi 7 wireless network card, supporting Bluetooth 5.4
- Support iGame Center lighting effect control software, which can synchronously adjust the lighting effects of heat sinks, cooling fans, and memory
- I/O backplane supports one click BIOS upgrade function
Guaranteed Safe Checkout
🔒 Secure payments powered by Cashfree– India’s trusted payment gateway.
Easy EMI options available on credit cards.
For domestic buyers, orders are shipped through registered domestic courier companies and /or speed post only. Orders are shipped within 3-5 working days or as per the delivery date agreed at the time of order confirmation and delivering of the shipment subject to Courier Company/post office norms. Variety Infotech is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 3-5 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. Delivery of all orders will be to the registered address of the buyer as per the credit/debit card only at all times (Unless specified at the time of Order). Variety Infotech is in no way responsible for any damage to the order while in transit to the buyer. Variety Infotech is proud to use fast, easy, and efficient secure payments gateways. All major cards are accepted.
We offer an exchange only if the product is not working. All requests will be approved after verification.
Note: an Unboxing video is mandatory to initiate any kind of exchange with unboxing video no exchange will be considered
Colorful CVN X870 ARK Frozen V14 AMD AM5 ATX Motherboard
Feature Highlights:
Exclusive custom white motherboard for CVN series
CVN series customized frost cooling armor, paired with fully covered condensing fins to enhance heat dissipation
Adopting a 14+2+1 phase enhanced power supply design (Dr MOS 80A)
Provide 2 PCIe 5.0 x4 M.2 SSD slots and 1 PCIe 4.0 x4 M.2 SSD slot
Provide 1 rear USB4 40Gbps Type-C interface (supports video output, up to 4K 60Hz resolution)
Provide 1 rear USB 3.2 Gen 2 10Gbps Type-C high-speed rear interface
Equipped with Realtek 5G high-speed wired network card and MT7925 WiFi 7 wireless network card, supporting Bluetooth 5.4
Support iGame Center lighting effect control software, which can synchronously adjust the lighting effects of heat sinks, cooling fans, and memory
I/O backplane supports one click BIOS upgrade function
Six major protective technologies for more stable product operation
Strict testing of 200 processes ensures quality assurance
PCB atomization process fully upgraded
410 provides high-quality service and guaranteed after-sales service
Specification
| Model | CVN X870 ARK FROZEN V14 |
|---|---|
| Product Series | CVN Series |
| Chipset | AMD X870 |
| Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) – Support DDR5-8200 (OC)/8000 (OC)/7800 (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400(OC)/5200 (OC)/5000MHz memory – Support Extreme Memory Profile (XMP) memory technology – Support EXtended Profiles for Overclocking (EXPO) memory technology – Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | three M.2 slots and four SATA 6Gb/s hard drive interfaces – M.2_1 slot: Supports 2242/2260/2280/22110 M.2 SSDs (PCIe 5.0/4.0 x4, CPU channel) – M.2_2 slot: Supports 2242/2260/2280/22110 M.2 SSDs (PCIe 5.0/4.0 x4, CPU channel) – M.2_3 slot: Supports 2242/2260/2280/22110 M.2 SSDs (PCIe 4.0 x4, Chipset channel) (*When a device is connected to the PCIe 4.0 x4 slot, the M.2_3 slot will be blocked) (*PCIe 5.0 support depends on the motherboard’s CPU) Supports creating RAID 0 and RAID 5 with M.2 NVMe hard drives 1, RAID 5, RAID 10 disk arrays Ryzen 9000 series: RAID 0/1/5/10 Ryzen 8000 series: RAID 0/1 Ryzen 7000 series: RAID 0/1/10 *Supported RAID configurations depend on the CPU used with the motherboard |
| Board I/O | Rear I/O: -2×USB 2.0 interfaces -4×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 2 10Gbps Type-A interface -1×USB 4 40Gbps Type-C interface (supports video output, up to 4K 60Hz resolution) -1×DP 1.2 interface, up to 4K 60Hz resolution -1×HDMI 2.0 interface, up to 4K 60Hz resolution -1×5G network interface -2×Wi Fi 7 antenna interfaces -5×Audio interfaces (audio input/output/microphone) – 1×S/PDIF audio interface -1×BIOS update button On board : -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 Pin expandable with 2 USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 2 Type-C Slot expandable with 1 USB 3.2 Gen 2 10Gbps Type-C interface -1×CPU fan pin -4×System fan pins -1×Water-cooled pump pin -3×5V 3-pin ARGB pins -1×12V 4-pin RGB pin -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin |
| Expansion Slots | 1 PCIe 5.0 x16 slot 1 PCIe x16 slot (supports PCIe 4.0 x4 specification) 1 PCIe 3.0 x1 slot (* When PCIe 4.0 x4 slot is connected to a device, M.2.3 slot will be shielded) |
| BIOS | 256M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8126-CG 5Gbit network card, MT7925 WiFi 7 wireless network card, Bluetooth 5.4 – Wi-Fi functionality may vary depending on the operating system. – For Windows 11, Wi-Fi 7 requires version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. – For Windows 10, please note that no drivers are available. For more information, refer to the Wi-Fi chipset vendor’s website. – Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country/region. – Bluetooth® versions are subject to change; please refer to the Wi-Fi module manufacturer’s website for the latest instructions. |
| Audio | Realtek ALC1220 high-fidelity decoding chip, supporting 7.1 channels |
| Configuration | ATX 305mm x 245mm |
| Weight | 2 kg |
|---|---|
| Dimensions | 31 × 25 × 5 cm |
| Brand | Colorful |
| Motherboard series | Colorful CVN |
| Motherboard size | ATX |
| Socket | AM5 |
| Memory series | DDR5 |
| EAN / UPC Code | 6970417599401 |
| Warranty | 3 Years |
Colorful CVN X870 ARK Frozen V14 AMD AM5 ATX Motherboard
Frequently Asked Questions about Colorful CVN X870 ARK Frozen V14 AMD AM5 ATX Motherboard
Is Colorful CVN X870 ARK Frozen V14 AMD AM5 ATX Motherboard 100% genuine and original?
What are the main features and attributes of Colorful CVN X870 ARK Frozen V14 AMD AM5 ATX Motherboard?
What is the current online price for Colorful CVN X870 ARK Frozen V14 AMD AM5 ATX Motherboard in India?
How long does shipping take for Colorful CVN X870 ARK Frozen V14 AMD AM5 ATX Motherboard?
