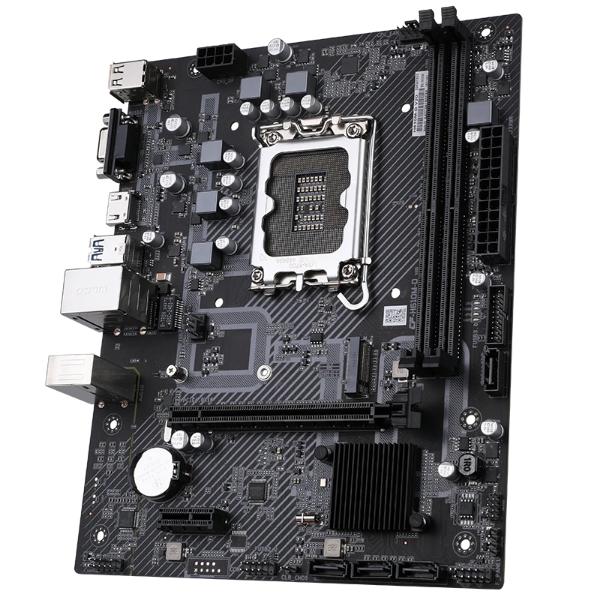

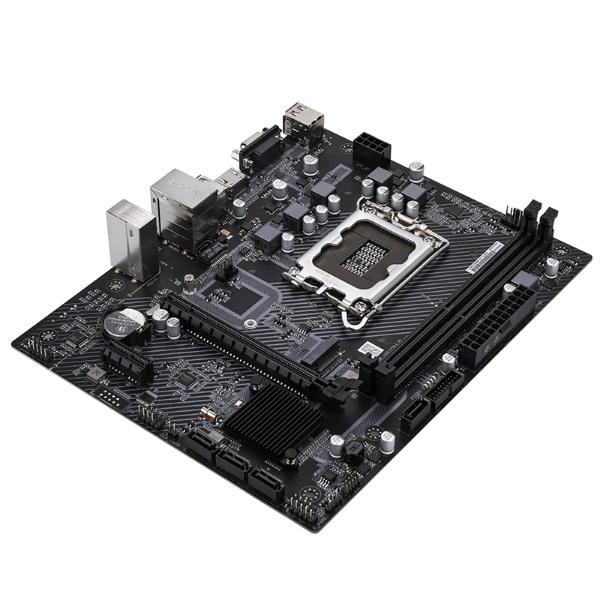

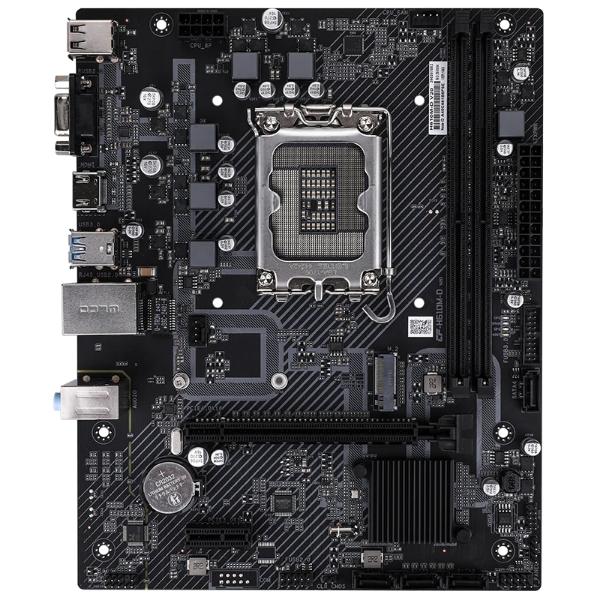

Colorful H610M-D V20 Intel mATX Motherboard
PLEASE VERIFY PRICE AND STOCK BEFORE ORDERING
- Supports dual-channel DDR4-3200MHz memory
- Provides 1 PCIe 3.0 x4 M.2 SSD slot
- Equipped with HDMI+VGA display interface
- Equipped with Realtek 8111H Gigabit wired network card
- Equipped with Realtek ALC897 sound card chip, supporting up to 5.1 channels
Original price was: ₹9,000.00.₹4,999.00Current price is: ₹4,999.00. (Inclusive of GST)
Guaranteed Safe Checkout
🔒 Secure payments powered by Cashfree– India’s trusted payment gateway.
Easy EMI options available on credit cards.
For domestic buyers, orders are shipped through registered domestic courier companies and /or speed post only. Orders are shipped within 3-5 working days or as per the delivery date agreed at the time of order confirmation and delivering of the shipment subject to Courier Company/post office norms. Variety Infotech is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 3-5 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. Delivery of all orders will be to the registered address of the buyer as per the credit/debit card only at all times (Unless specified at the time of Order). Variety Infotech is in no way responsible for any damage to the order while in transit to the buyer. Variety Infotech is proud to use fast, easy, and efficient secure payments gateways. All major cards are accepted.
We offer an exchange only if the product is not working. All requests will be approved after verification.
Note: an Unboxing video is mandatory to initiate any kind of exchange with unboxing video no exchange will be considered
Colorful H610M-D V20 Intel mATX Motherboard
Feature Highlights:
Intel H610 chipset
Supports dual-channel DDR4-3200MHz memory
Provides 1 PCIe 3.0 x4 M.2 SSD slot
Equipped with HDMI+VGA display interface
Equipped with Realtek 8111H Gigabit wired network card
Equipped with Realtek ALC897 sound card chip, supporting up to 5.1 channels
Rear: 2 USB 3.2 Gen 1 Type-A interfaces, 4 USB 2.0 interfaces
Front: Expandable 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces
Specification
| Model | H610M-D V20 |
|---|---|
| Product Series | Colorful series |
| Chipset | Intel H610 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 2 DDR4 memory slots, supporting up to 64 GB memory (single slot supports up to 32 GB) – Supports DDR4-3200/2933/2666/2400/2133MHz memory – Supports dual-channel memory technology (*Please visit Colorful’s official website www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces -M.2 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel) |

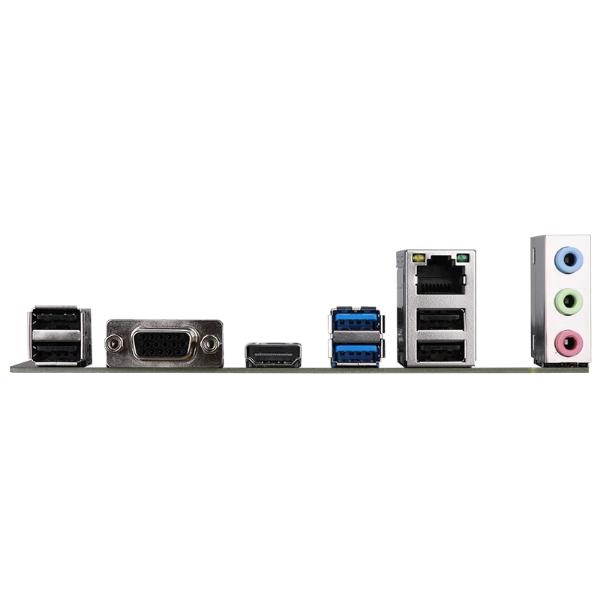

| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×VGA interface -1×Gigabit network interface -3×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -1×System fan pin -1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Clear CMOS jumper -1×BIOS burner pin |
| Expansion Slots | 1 PCIe 4.0 x16 slot 1 PCIe 3.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, support scheduled startup, call startup |
| Hardware Monitor | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring |
| LAN | RTL8111H Gigabit network card |
| Audio | Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels |
| Configuration | M-ATX 225mm x 180mm |
| Weight | 1 kg |
|---|---|
| Brand | Colorful |
| Chipset | H610 |
| Motherboard size | mATX |
| Socket | LGA 1700 |
| Ram type | DDR4 |
| Warranty | 3 Years |
