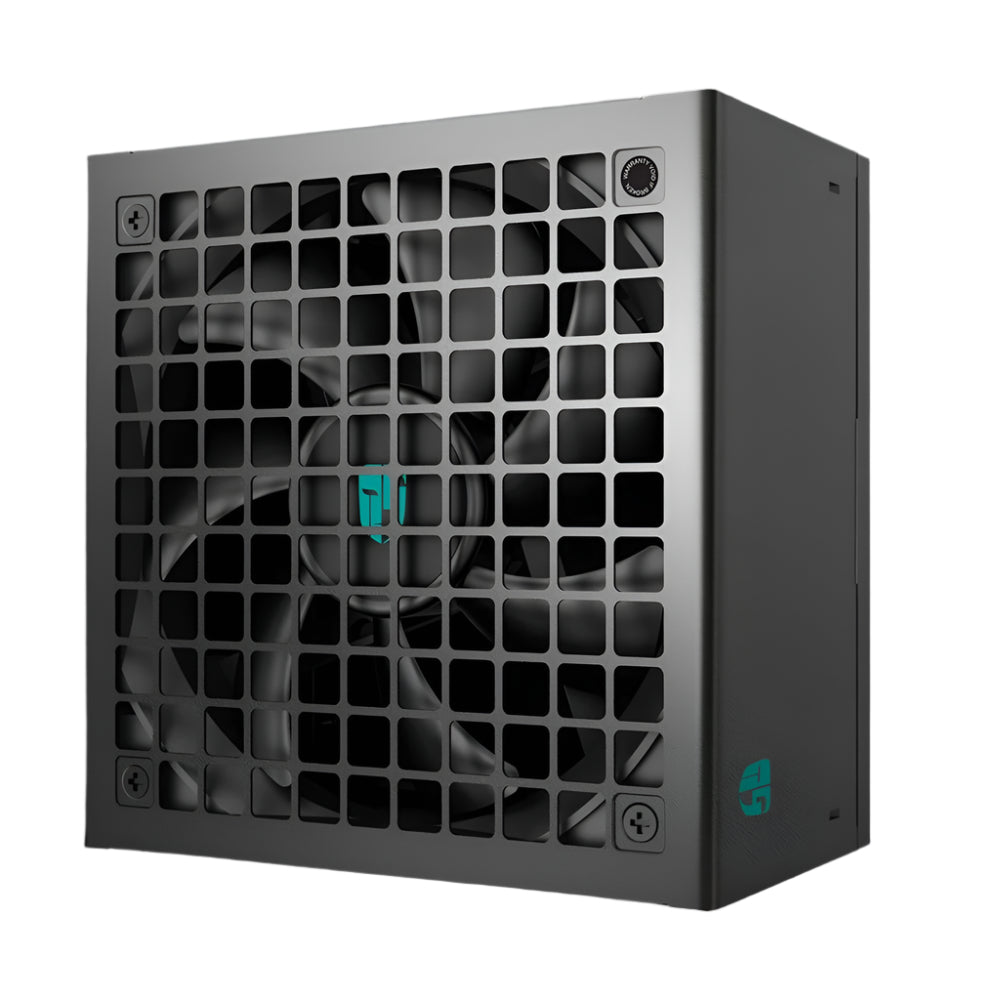

DEEPCOOL Gamer Storm PN1000M 1000W 80 Plus Gold Fully Modular ATX 3.1 Power Supply – (R-PNA00M-FC0B-JGIN)
🛍️ 8 customer have this in their cart
Original price was: ₹18,999.00.₹14,148.00Current price is: ₹14,148.00. (Inclusive of GST)
Shipping calculated at checkout.
DEEPCOOL Gamer Storm PN1000M 1000W 80 Plus Gold Fully Modular ATX 3.1 Power Supply
Future Proof
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN1000M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
Graceful Gold
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
Power You Can Trust
Through the use of a main Japanese electrolytic capacitor, active PFC, half-bridge SRC LLC, and a DC-to-DC topology, the PN1000M can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 Power
Equipped with a high-grade 105C-resistant 16AWG copper-core 12V-2×6 cable, the PN1000M provides up to 600W for modern GPUs.
Dynamic FDB Fan
The PN1000M comes equipped with a dynamic 135mm FDB fan that will adjust its speed based on the cooling needs of the PSU.
Due to the high quality of the parts utilized, the PN1000M will operate at altitudes up to 5000 meters above sea level.
It Will Fit!
Fitment into the vast majority of cases should not be an issue, as the PN1000M comes in at a compact 150x150x86mm size.
Excellent Coverage
The PN1000M is engineered and manufactured at such a high level that it offers a lengthy 10 years of trouble-free limited warranty coverage.
Specifications of
| Model No | R-PNA00M-FC0B-JGIN |
| Type | ATX12V V3.1 |
| Product Dimensions | 150×150×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 135mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 – 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| Weight | 2.5 kg |
|---|---|
| Dimensions | 15.0 × 15.0 × 8.6 cm |
| Brand | Deepcool |
| Color | Black |
| Modular | Fully Modular |
| Product type | Normal |
| Psu series | Gold |
| Watt | 1000W |
| Warranty | 10 Years |
| Ean code | 6933412741275 |
