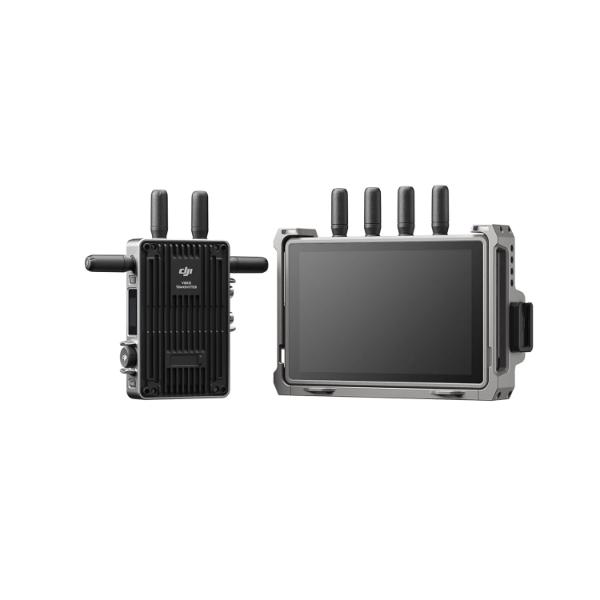

DJI Transmission (High-Bright Monitor Combo)
RAM & SSD & Graphics Card prices are highly volatile. Please confirm stock and price before placing your order.
- Integrated Wireless Receiver – The High-Bright Remote Monitor has the same image processing chip built into the DJI Ronin 4D body. In addition to receiving and monitoring, it also has a variety of expansive functions.
- Gimbal/Focus/Camera Control – Supports smooth remote control of camera parameters and recording through the image transmission screen.
- Independent Recording and Playback – The High-Bright Remote Monitor comes standard with a microSD card slot which supports independent recording of up to 1080p/60fps at H.264.
- Includes DJI Video Transmitter, High-Bright Remote Monitor, and more.
- This integrated solution combines reception, monitoring, and recording into one, with extensive accessories to deliver a more efficient coordinated experience.
Original price was: ₹300,000.00.₹190,000.00Current price is: ₹190,000.00. (Inclusive of GST)
Guaranteed Safe Checkout
🔒 Secure payments powered by Cashfree– India’s trusted payment gateway.
Easy EMI options available on credit cards.
For domestic buyers, orders are shipped through registered domestic courier companies and /or speed post only. Orders are shipped within 3-5 working days or as per the delivery date agreed at the time of order confirmation and delivering of the shipment subject to Courier Company/post office norms. Variety Infotech is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 3-5 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. Delivery of all orders will be to the registered address of the buyer as per the credit/debit card only at all times (Unless specified at the time of Order). Variety Infotech is in no way responsible for any damage to the order while in transit to the buyer. Variety Infotech is proud to use fast, easy, and efficient secure payments gateways. All major cards are accepted.
We offer an exchange only if the product is not working. All requests will be approved after verification.
Note: an Unboxing video is mandatory to initiate any kind of exchange with unboxing video no exchange will be considered
DJI Transmission (High-Bright Monitor Combo)
Unlimited Number of Receivers [2]
Broadcast mode allows an unlimited number of receivers, convenient for real-time monitoring by multiple teams for enhanced efficiency.
Triple-Band Seamless Auto Hopping
Supports triple-band automatic frequency hopping between 2.4 GHz, 5.8 GHz, and DFS for optimal wireless channel use.
End-to-End Ultra-Low Latency
Use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency.
Integrated Wireless Receiver
The DJI High-Bright Remote Monitor[3] integrates monitor and receiver with expansion features and supportive tools for precise control.
Remote Gimbal/Focus/Camera Control [4]
When used with Ronin 4D Hand Grips or DJI Master Wheels, [5] you can remotely control Ronin 2, RS 3 Pro, focus, and camera functions.
| Specification | Details |
|---|---|
| Combo Includes | Video Transmitter & Video Receiver (no monitor) (DJI Official) |
| Transmission | 1080p @ 60 fps, H.264; up to 6 km (FCC) / 4 km (CE/SRRC/MIC) LOS using O3 Pro tech |
| Latency | ~70 ms end-to-end |
| Frequency Bands | 2.400–2.4835 GHz; 5.150–5.850 GHz including DFS auto-hopping (23 channels) |
| Max Bandwidth / Bitrate | 40 MHz / 40 Mbps |
| Power Consumption & Supply | TX: 11 W; RX: 9 W; input 6–18 V; output port 6–18 V |
| Operating Time (WB37 battery) | TX: ~3 h 40 m; RX: ~3 h 50 m (room temp) |
| Dimensions (no antennas) | TX/RX: 127 × 87 × 26 mm each |
| Weight | Transmitter: ~350 g; Receiver: ~350 g |
| Audio Support | Embedded SDI/HDMI audio; PCM output |
| Metadata Support | SDI metadata (camera info, timecode) |
| Encryption & Channels | AES‑256 encryption; 23 auto-hopping channels |
| Operating Temp | –10 °C to +45 °C |
| Monitor & Control | Supports production monitors; gimbal/focus/camera remote control with two RX units |
| Price (US) | Standard Combo doesn’t include monitor; High‑Bright Monitor Combo is USD 2,499 |
| Dimensions | 12.6 × 8.16 × 3.85 cm |
|---|---|
| Brand | DJI |
| Color | Black |
| Product type | Normal |
| Ean code | 6941565957207 |
