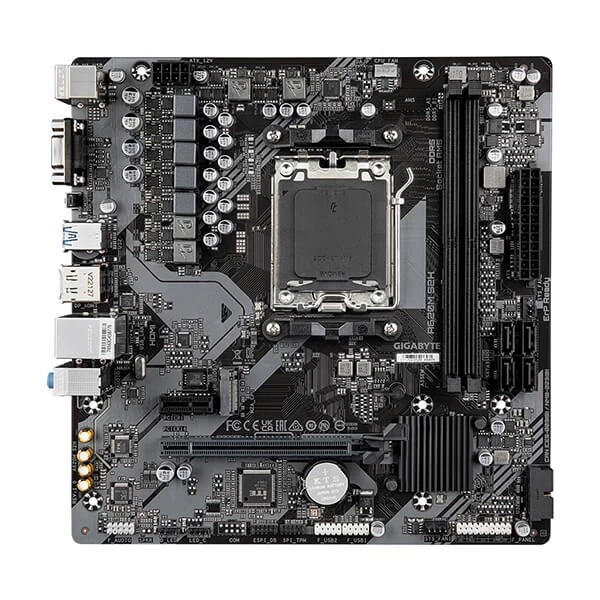

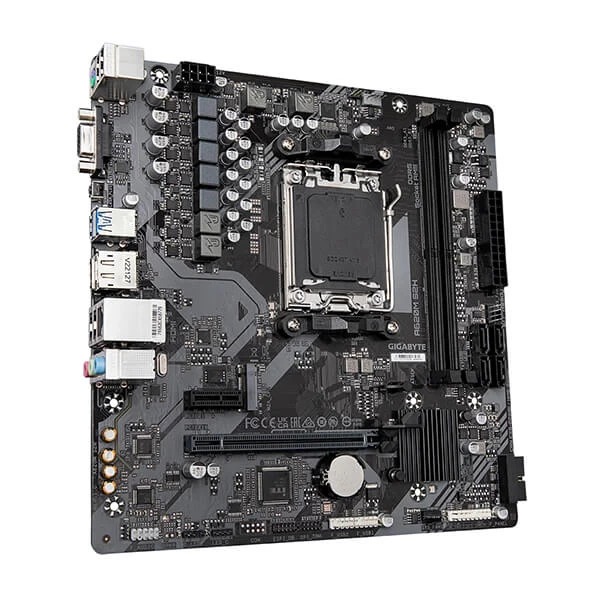

Gigabyte A620M S2H Motherboard – (A620M-S2H)
🛍️ 6 customer have this in their cart
- AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
Original price was: ₹19,320.00.₹8,201.00Current price is: ₹8,201.00. (Inclusive of GST)
Shipping calculated at checkout.
Gigabyte A620M S2H Motherboard (rev. 1.0)
Feature
- AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors
- Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5: 2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Fast Networks: GbE LAN

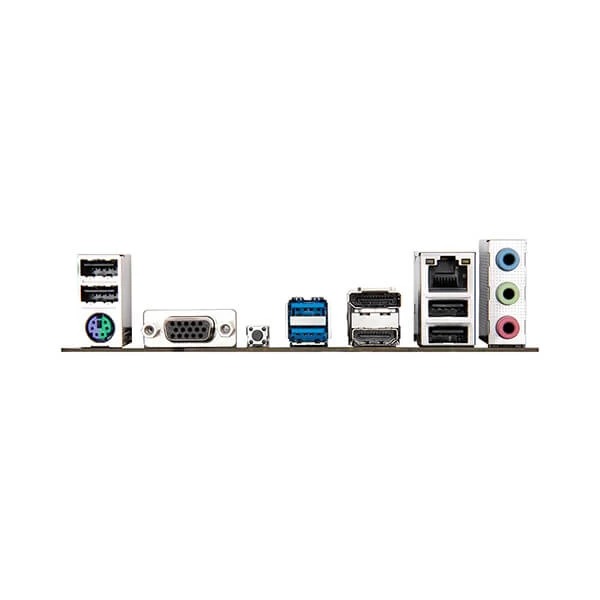

- Extended Connectivity: DP, HDMI, D-Sub
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD’s new generation CPU by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
- Optimized gate charge to minimize switching losses.
- Lower temperature, smaller size, better thermal characteristics.
PCIe 4.0 Hardware Design
PCIe 4.0 x16 slot with faster bandwidth and lower impedance.
M.2 PCIe 4.0 x4 slot with lower impedance.
DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond*
* EXPO / XMP profiles support may vary depending on memory modules.
Please refer the completed validated memory support list.
Product features may vary by model.
Unlock DDR5 Voltage
- GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
- Transforms Native DDR5 memory module to Overclocked DDR5 memory
- Increases DDR5 memory overclocking performance and capability
- Supports all PMIC vendors for maximum compatibility
SMART FAN 6
High Current Support
Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control
Multiple temperature/fan speed control points for precise fan curve
Dual Curve Mode
Slope/Stair dual mode for different user scenario
Fan Stop
Fan can stop completely below users’ specified temperature point
GbE LAN with Bandwidth Management
High-End Audio Capacitors
Audio Noise Guard
Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
| Model | A620M S2H |
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Please refer “CPU Support List” for more information.) |
| Chipset | AMD A620 |
| Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) |
| Onboard Graphics | Integrated Graphics Processor:
Support for DisplayPort 1.4 version.
Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | CPU: – 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU: – 2 x USB 3.2 Gen 1 ports on the back panel – 1 x USB 2.0/1.1 port on the back panel Chipset: – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors |
|
| Back Panel Connectors |
|
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
|
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
|
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 23.0cm x 22.5cm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 0.700 kg |
|---|---|
| Dimensions | 23.0 × 22.5 × 3.0 cm |
| Brand | Gigabyte |
| Color | Black |
| Product type | Normal |
| Motherboard size | M-ATX |
| Socket | AM5 |
| Chipset | A620 |
| Ram type | DDR5 |
| Warranty | 3 Years |
| Ean code | 4719331855208 |
