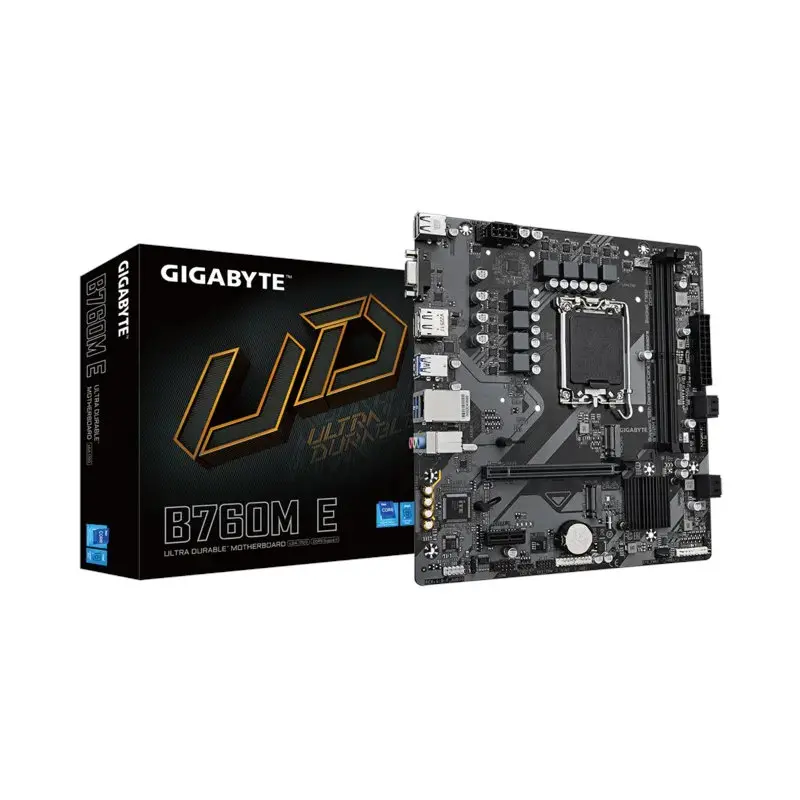

Gigabyte B760M E LGA1700 Micro ATX Motherboard
Call for Price
Guaranteed Safe Checkout
🔒 Secure payments powered by Cashfree– India’s trusted payment gateway.
Easy EMI options available on credit cards.
For domestic buyers, orders are shipped through registered domestic courier companies and /or speed post only. Orders are shipped within 3-5 working days or as per the delivery date agreed at the time of order confirmation and delivering of the shipment subject to Courier Company/post office norms. Variety Infotech is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 3-5 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. Delivery of all orders will be to the registered address of the buyer as per the credit/debit card only at all times (Unless specified at the time of Order). Variety Infotech is in no way responsible for any damage to the order while in transit to the buyer. Variety Infotech is proud to use fast, easy, and efficient secure payments gateways. All major cards are accepted.
We offer an exchange only if the product is not working. All requests will be approved after verification.
Note: an Unboxing video is mandatory to initiate any kind of exchange with unboxing video no exchange will be considered
Description

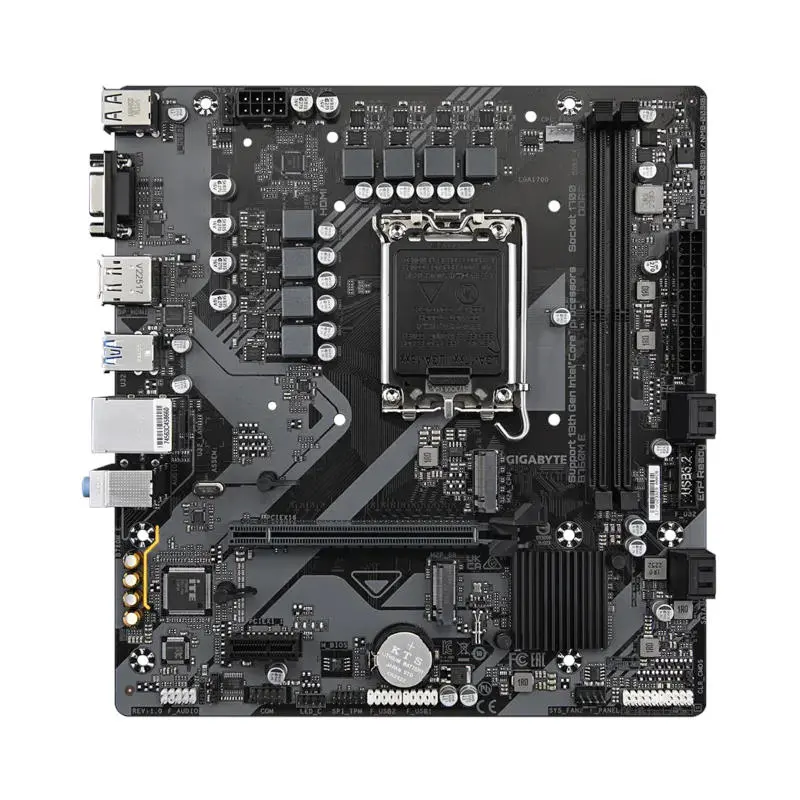

Gigabyte B760M E LGA1700 Micro ATX Motherboard
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：2*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：Display Port, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
| Specification | |
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer “CPU Support List” for more information.) |
| Chipset | Intel ® B760 Express Chipset |
| Memory | Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: – 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) – 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Back Panel Connectors | 2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
| Weight | 2 kg |
|---|---|
| brand | Gigabyte |
| motherboard-cpu-support | Intel LGA 1700 |
| motherboard-max-memory | 128GB |
| motherboard-memory-support | DDR5 |
| motherboard-size | Micro ATX |
