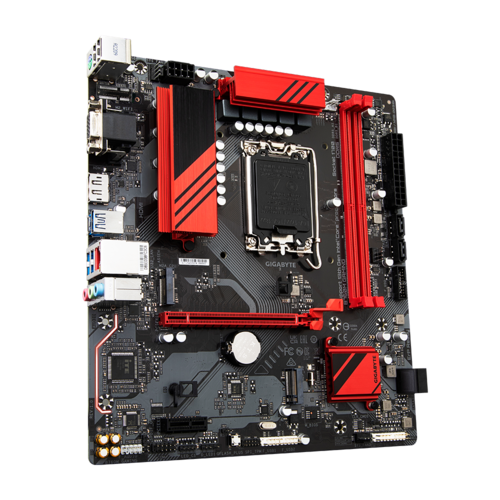

GIGABYTE B760M GAMING DDR5 INTEL 13TH/12TH GEN LGA 1700 M-ATX MOTHERBOARD
Feature
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance:Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR5:2*DIMMs XMP Memory Module Support
- Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch:PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks:2.5GbE LAN
- Extended Connectivity:Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
• Premium Choke and Capacitors to improve transient response and minimize oscillation
- Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
- Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
Add constantly used items into the favorite menu for quick access.
Show all kinds of storage information including SATA, PCIE and M.2 interface.
List all changes before saving and exiting bios. Quickly review overall settings modification.
Clearly show each loadline calibration setting in an intuitive curve graph.
Category | Specifications |
---|---|
CPU | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors. |
L3 Cache | Varies with CPU. Refer to “CPU Support List” for more information. |
Chipset | Intel® B760 Express Chipset |
Memory | – Support for DDR5 8000(O.C.) to 4000 MT/s memory modules – 2 x DDR5 DIMM sockets, up to 128 GB (64 GB single DIMM) – Dual channel memory architecture – Support for ECC and non-ECC Un-buffered DIMMs – Support for XMP modules – Check “Memory Support List” for details. |
Onboard Graphics | Integrated Intel® HD Graphics – 1 x D-Sub port (1920×1200@60 Hz) – 1 x HDMI port (4096×2160@60 Hz, HDMI 2.1, HDCP 2.3) – 1 x DisplayPort (4096×2304@60 Hz, DisplayPort 1.2, HDCP 2.3) – Support for up to 3 displays simultaneously. |
Audio | Realtek® Audio CODEC – High Definition Audio – 2/4/5.1/7.1-channel – S/PDIF Out support – Audio jack functionality configurable via software. |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Expansion Slots | – CPU: 1 x PCIe x16 slot (PCIe 4.0 x16, for graphics card or NVMe SSD) – Chipset: 1 x PCIe x1 slot (PCIe 3.0 x1) |
Storage Interface | – CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) – Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) – 4 x SATA 6Gb/s connectors – RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA. |
USB | – Chipset: 1 x USB Type-C® (USB 3.2 Gen 1), 5 x USB 3.2 Gen 1 (3 rear, 2 internal), 2 x USB 2.0/1.1 (rear) – Chipset+USB 2.0 Hubs: 4 x USB 2.0/1.1 (internal) |
Internal I/O Connectors | – 1 x 24-pin ATX main power connector – 1 x 8-pin ATX 12V power connector – 1 x CPU fan header – 3 x system fan headers – 1 x addressable LED strip header – 1 x RGB LED strip header – 2 x M.2 Socket 3 connectors – 4 x SATA 6Gb/s connectors – 1 x front panel header – 1 x front panel audio header – 1 x S/PDIF Out header – 1 x USB 3.2 Gen 1 header – 2 x USB 2.0/1.1 headers – 1 x Trusted Platform Module header – 1 x serial port header – 1 x Q-Flash Plus button – 1 x reset jumper – 1 x Clear CMOS jumper |
Back Panel Connectors | – 2 x USB 2.0/1.1 ports – 1 x PS/2 keyboard/mouse port – 1 x D-Sub port – 1 x HDMI port – 1 x DisplayPort – 3 x USB 3.2 Gen 1 ports – 1 x USB Type-C® (USB 3.2 Gen 1) – 1 x RJ-45 port – 3 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | – Voltage detection – Temperature detection – Fan speed detection – Water cooling flow rate detection – Fan fail warning – Fan speed control (dependent on fan installed) |
BIOS | – 1 x 128 Mbit flash – AMI UEFI BIOS – PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features | – Support for GIGABYTE Control Center (GCC) – Q-Flash – Q-Flash Plus |
Bundled Software | – Norton® Internet Security (OEM version) – LAN bandwidth management software |
Operating System | – Windows 11 64-bit – Windows 10 64-bit |
Form Factor | Micro ATX; 24.4 cm x 22.5 cm |
