Kingston 16GB 3200MHZ DDR4 NON-ECC RAM (KVR32S22S8-16)
Original price was: ₹49,999.00.₹11,149.00Current price is: ₹11,149.00. (Inclusive of GST)
Guaranteed Safe Checkout
🔒 Secure payments powered by Cashfree– India’s trusted payment gateway.
Easy EMI options available on credit cards.
For domestic buyers, orders are shipped through registered domestic courier companies and /or speed post only. Orders are shipped within 3-5 working days or as per the delivery date agreed at the time of order confirmation and delivering of the shipment subject to Courier Company/post office norms. Variety Infotech is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 3-5 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. Delivery of all orders will be to the registered address of the buyer as per the credit/debit card only at all times (Unless specified at the time of Order). Variety Infotech is in no way responsible for any damage to the order while in transit to the buyer. Variety Infotech is proud to use fast, easy, and efficient secure payments gateways. All major cards are accepted.
We offer an exchange only if the product is not working. All requests will be approved after verification.
Note: an Unboxing video is mandatory to initiate any kind of exchange with unboxing video no exchange will be considered
Kingston 16GB 3200MHZ DDR4 NON-ECC RAM (KVR32S22S8-16)
Feature

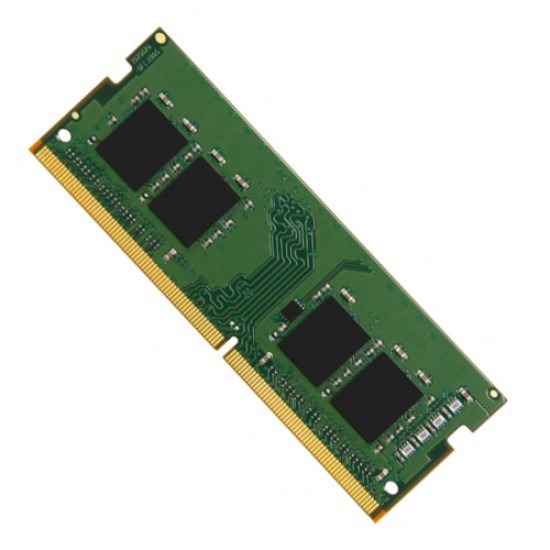

This document describes Kingston ValueRAM’s KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
| Specification | Details |
|---|---|
| Brand | Kingston |
| Model | KVR32S22S8-16 |
| CL (IDD) | 22 cycles |
| Row Cycle Time (tRCmin) | 45.75ns (min.) |
| Refresh to Active/Refresh | 350ns (min.) |
| Command Time (tRFCmin) | 32ns (min.) |
| Row Active Time (tRASmin) | 32ns (min.) |
| UL Rating | 94 V – 0 |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| Warranty | Ten Years Kingston Warranty |
| Weight | 1 kg |
|---|---|
| Dimensions | 6.6 × 1 × 0.2 cm |
| Brand | Kingston |
| Color | green |
| Ram type | DDR4 |
| Ram Frequency | 3200 MHz |
| Warranty | 10 Years |
