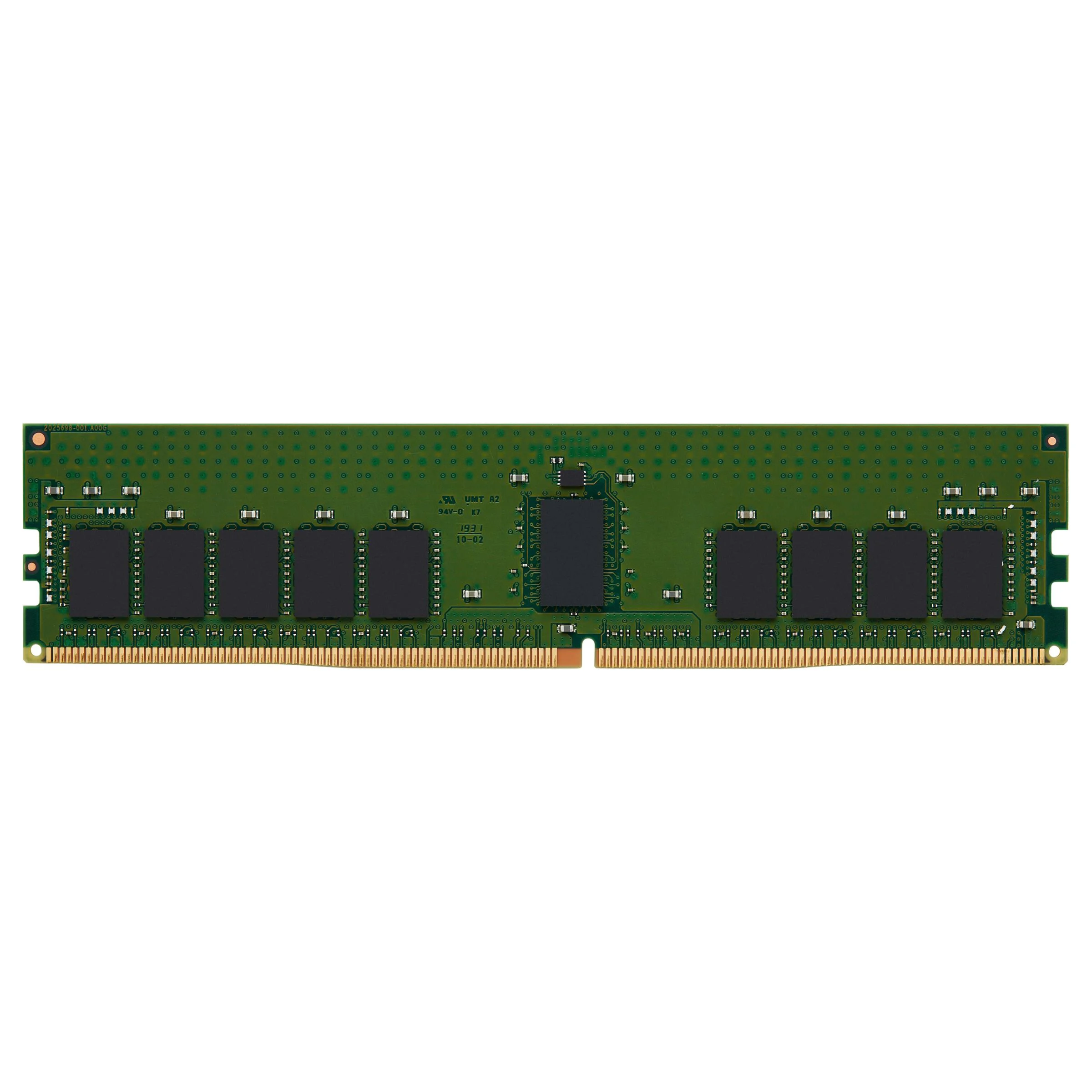

Kingston KSM32RD8/32HD 32GB DDR4 SDRAM Server Premier Memory
Original price was: ₹125,000.00.₹59,999.00Current price is: ₹59,999.00. (Inclusive of GST)
- Product Type: Ram Module
- Manufacturer Part Number: KSM32RD8/32HD
- Brand Name: KINGSTON
- Product Name: Server Premier 32gb Ddr4 Sdram Memory Module
- Product Line: Server Premier
Guaranteed Safe Checkout
🔒 Secure payments powered by Cashfree– India’s trusted payment gateway.
Easy EMI options available on credit cards.
For domestic buyers, orders are shipped through registered domestic courier companies and /or speed post only. Orders are shipped within 3-5 working days or as per the delivery date agreed at the time of order confirmation and delivering of the shipment subject to Courier Company/post office norms. Variety Infotech is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 3-5 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. Delivery of all orders will be to the registered address of the buyer as per the credit/debit card only at all times (Unless specified at the time of Order). Variety Infotech is in no way responsible for any damage to the order while in transit to the buyer. Variety Infotech is proud to use fast, easy, and efficient secure payments gateways. All major cards are accepted.
We offer an exchange only if the product is not working. All requests will be approved after verification.
Note: an Unboxing video is mandatory to initiate any kind of exchange with unboxing video no exchange will be considered
- Product Type: Ram Module
- Manufacturer Part Number: KSM32RD8/32HD
- Brand Name: KINGSTON
- Product Name: Server Premier 32gb Ddr4 Sdram Memory Module
- Product Line: Server Premier
Kingston KSM32RD8/32HD 32GB DDR4 SDRAM Server Premier Memory
Kingston‘s KSM32RD8/32HD is a 4G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/ parity, 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Features
- 32GB DDR4-3200 ECC Registered DIMM (RDIMM)
- 2Rx8 dual-rank memory architecture
- CL22 latency at 1.2V
- Built with eighteen 2G x 8-bit FBGA components
- JEDEC standard DDR4-3200 timing: 22-22-22
- 288-pin DIMM with gold contact fingers
- Supports ECC error correction and detection
- Registered memory with parity support
- Compatible with multiple transfer rates:
- PC4-3200
- PC4-2933
- PC4-2666
- PC4-2400
- PC4-2133
- PC4-1866
- PC4-1600
- 16 internal memory banks
- Bank Grouping support for optimized latency
- Bi-Directional Differential Data Strobe
- 8-bit pre-fetch architecture
- Burst Length support: BL8 and BC4 (Burst Chop)
- On-Die Termination (ODT) support
- Integrated temperature sensor with SPD
- Per DRAM Addressability supported
- Internal Vref DQ level generation available
- Write CRC supported across all speed grades
- CA Parity (Command/Address Parity) mode supported
- RoHS compliant
Power Specifications
- VDD: 1.2V
- VDDQ: 1.2V
- VPP: 2.5V
- VDDSPD: 2.41V – 2.75V
Key Features
| Specification | Details |
|---|---|
| Brand | Kingston |
| Model | KSM32RD8/32HD |
| Capacity | 32GB |
| Memory Type | DDR4 SDRAM |
| Form Factor | 288-Pin DIMM |
| Speed | DDR4-3200 (PC4-25600) |
| CAS Latency | CL22 |
| Timing | 22-22-22 |
| Voltage | 1.20V |
| ECC | Yes |
| Buffered/Registered | Registered |
| Rank | 2Rx8 |
| Weight | 1 kg |
|---|---|
| Color | Green |
| Brands | Kingston |
| Ean-Code | 740617347173 |
| Ram-Size | 32GB |
| Ram-Type | DDR4 |
