MSI MAG A520M VECTOR WIFI AM4 Micro-ATX Motherboard

RAM & SSD & Graphics Card prices are highly volatile. Please confirm stock and price before placing your order.

A520 Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
Supports DDR4 Memory, up to 4600(OC) MHz
Extended Heatsink Design: Leading heatsink design, extended for maximum cooling and performance
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

Original price was: ₹21,999.00.Current price is: ₹6,949.00. (Inclusive of GST)

95 People watching this product now!

21 Items sold in last 6 hours

✈️ Estimate Delivery:

SKU: MAG-A520M-VECTOR-WIFI Categories: Motherboard, MSI AMD Motherboard, MSI Motherboard Tags: MAG-A520M-VECTOR-WIFI, MSI, MSI MAG A520M VECTOR, MSI MAG A520M VECTOR WIFI, MSI MAG A520M VECTOR WIFI AM4 Micro-ATX Motherboard, MSI MAG A520M VECTOR WIFI Motherboard

Guaranteed Safe Checkout

🔒 Secure payments powered by Cashfree– India’s trusted payment gateway.
Easy EMI options available on credit cards.

Shipping

For domestic buyers, orders are shipped through registered domestic courier companies and /or speed post only. Orders are shipped within 3-5 working days or as per the delivery date agreed at the time of order confirmation and delivering of the shipment subject to Courier Company/post office norms. Variety Infotech is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 3-5 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. Delivery of all orders will be to the registered address of the buyer as per the credit/debit card only at all times (Unless specified at the time of Order). Variety Infotech is in no way responsible for any damage to the order while in transit to the buyer. Variety Infotech is proud to use fast, easy, and efficient secure payments gateways. All major cards are accepted.

Exchange

We offer an exchange only if the product is not working. All requests will be approved after verification.

Note: an Unboxing video is mandatory to initiate any kind of exchange with unboxing video no exchange will be considered

Description

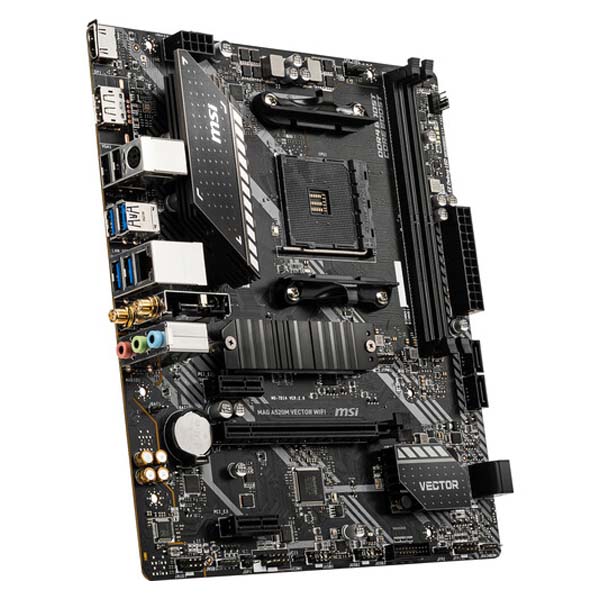

MSI MAG A520M VECTOR WIFI AM4 Micro-ATX Motherboard

Feature

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
Supports DDR4 Memory, up to 4600(OC) MHz
Extended Heatsink Design: Leading heatsink design, extended for maximum cooling and performance
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
Core Boost: With premium layout and digital power design to support more cores and provide better performance
2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
Audio Boost: Reward your ears with studio grade sound quality
Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface

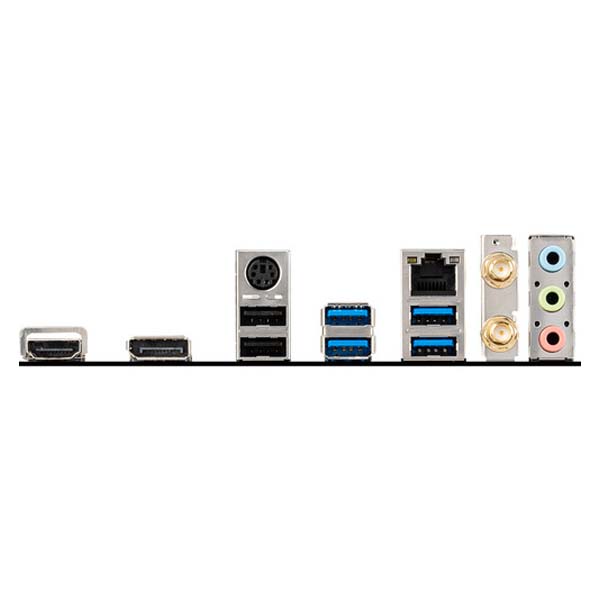

The rear I/O panel features four USB 3.2 Gen 1 and two USB 2.0 Type-A ports. A legacy mouse or keyboard can be connected to the PS/2 port, while displays can be hooked up using the DisplayPort or HDMI outputs. An RJ45 port is also present, supporting Gigabit Ethernet. Two Wi-Fi antenna connectors facilitate Wi-Fi 5 connectivity, while the preinstalled wireless controller further facilitates Bluetooth 4.2. The rear panel also sports three 3.5mm audio jacks. Relying on Realtek audio codecs, this motherboard supports 7.1 Surround Sound. The MAG A520M VECTOR WIFI AM4 Micro-ATX Motherboard is compatible with Windows 10 operating systems.

AMD A520 Chipset

The AMD A520 chipset supports 3rd Gen Ryzen processors using the AM4 socket.

Extended Heatsink

Keep high-end CPUs running at full speed, thanks to the extended PWM heatsink and optimized circuit design.

M.2 Shield FROZR

Part of the motherboard’s heatsink design, the M.2 Shield FROZR ensures smooth SSD performance when temperatures rise.

Fan Control via BIOS and Software

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to four temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

Automatic Fan Detection

MSI fan headers can automatically detect if a fan needs to run in DC or PWM mode, streamlining the fan tuning experience.

4+2+1 Duet Rail Power System

Combining VRM design with Core Boost, this motherboard is designed to tackle heavy gaming loads.

Core Boost

Core Boost technology allows for precise and undistorted current delivery to the CPU. In addition to multi-core CPU support, Core Boost also benefits CPU overclocking.

Game Boost

Enable one-second overclocking with Game Boost, delivering more FPS for smoother gameplay.

Load-Line Calibration

Load-line calibration ensures your CPU voltage remains stable under any load, even with demanding, CPU-heavy performance.

Overvoltage Protection

Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components.

Keep-Out Zone

Motherboard circuitry ensures case standoff keep-out zones are clear, preventing any contact between components and damage to the motherboard.

EZ Debug LED

Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

2oz Copper PCB

An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability during overclocking.

Double ESD Protection

Double ESD protection provides an optimized grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

Dragon Center

The Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features for color calibration, live updates, user scenarios, hardware monitoring, fan control, RGB lighting, and product registration.

MSI App Player

Developed under an exclusive partnership with BlueStacks, the MSI App Player is intended to provide a seamless gaming experience between mobile games and the PC platform, utilizing customized features as specific keyboard lighting and better graphics when multitasking.

Isolated Audio Design

Like a dedicated sound card, audio components and circuits are located on a reserved motherboard section and electrically isolated.

Separate Audio Layers

Using separated layers in the PCB, this motherboard ensures accurate sound quality for both left and right audio channels.

USB 3.2 Gen 1

Synonymous with USB 3.1 Gen 1, USB 3.2 Gen 1 features a maximum throughput of 5 Gb/s when used with compatible devices.

Additional information

Weight	1 kg
Product type	Normal
Color	Black
Brand	MSI
Motherboard size	mATX
Socket	AM4
Warranty	3 Years
EAN / UPC Code	4.72E+12
