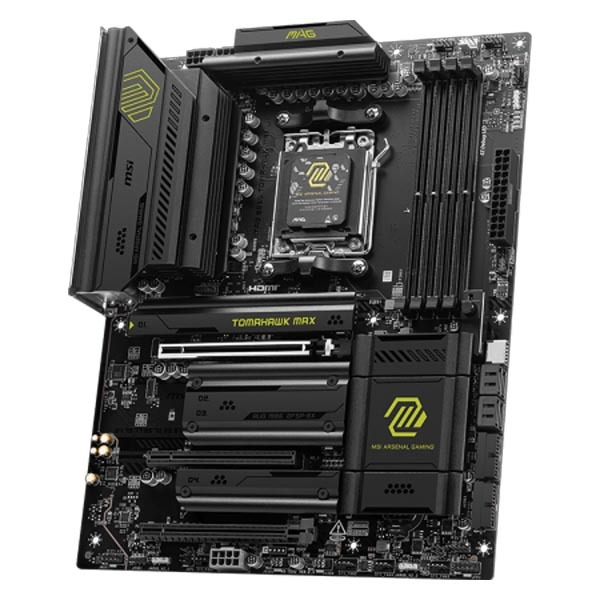

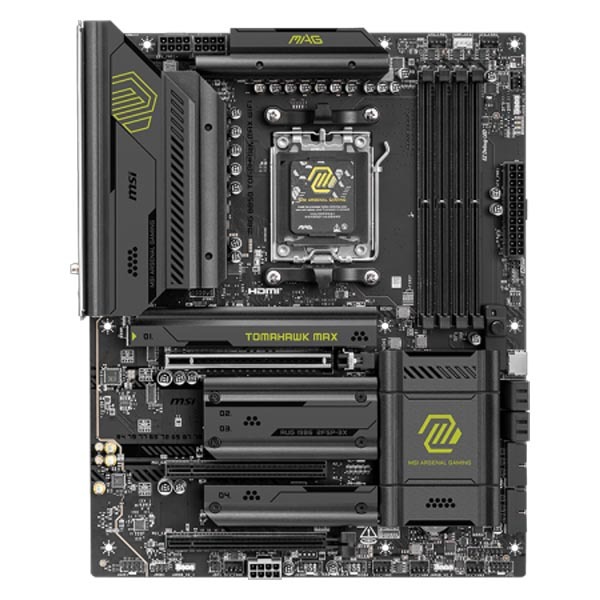

MSI MAG B850 TOMAHAWK MAX WIFI Motherboard
Due to Daily Price Fluctuations, Please Verify the cost and Stock Before Placing the Order
- AMD B850
- Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
- Up to DDR5 8400+ MT/s (OC)
Original price was: ₹39,999.00.₹23,499.00Current price is: ₹23,499.00. (Inclusive of GST)
For domestic buyers, orders are shipped through registered domestic courier companies and /or speed post only. Orders are shipped within 3-5 working days or as per the delivery date agreed at the time of order confirmation and delivering of the shipment subject to Courier Company/post office norms. Variety Infotech is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 3-5 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. Delivery of all orders will be to the registered address of the buyer as per the credit/debit card only at all times (Unless specified at the time of Order). Variety Infotech is in no way responsible for any damage to the order while in transit to the buyer. Variety Infotech is proud to use fast, easy, and efficient secure payments gateways. All major cards are accepted.
We offer an exchange only if the product is not working. All requests will be approved after verification.
Note: an Unboxing video is mandatory to initiate any kind of exchange with unboxing video no exchange will be considered
MSI MAG B850 TOMAHAWK MAX WIFI Motherboard, ATX – Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5-80A SPS VRM, DDR5 Memory Boost 8400+ MT/s (OC), PCIe 5.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN
Feature
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.
MAG B850 TOMAHAWK MAX WIFI
Stable Foundation, Durably Built
The MAG B850 TOMAHAWK MAX WIFI is a gaming oriented ATX motherboard that is contructued with a 14 Duet Rail Power System and the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7 and DDR5 support that balances both value and premium hardware.
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors (Zen 5, Zen 4, AM5)
- Ultra Power: 14 Duet Rail Power System with 80A SPS, 8-layer PCB, Server Grade PCB material
- 4 x DDR5 DIMMs with Memory Boost: Dual Channel (256GB Max. / 8400+ MT/s OC)
- 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
- Lightning Gen5 & Gen4 M.2 slots
- High-Speed Connectivity: USB 20G Type-C, Realtek 5G LAN, Full-speed Wi-Fi 7 solution, Bluetooth 5.4
- 8-Channel (7.1) USB High Performance Audio with Audio Boost 5
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release, EZ Antenna
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
The MAG B850 TOMAHAWK MAX WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
- Form Factor: ATX
- Socket Type: AM5
- Chipset: AMD B850
Ultra Power – 14 Duet Rail Power System with 80A Smart Power Stage
With exclusive Core Boost technology and dual 8 pin power connectors, the MAG B850 TOMAHAWK MAX WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- 14 Duet Rail Power System (80A / SPS)
- 2 Phase SOC Power
- 1 Phase MISC Power
Frozr Design
- Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
- Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
- Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizzard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8400+ MT/s OC)*
- Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
- High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
- EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 8400+ MT/s, supports AMD EXPO and Intel XMP.
Fortified PCIe 5.0 x16 Slot
The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting up to twice the weight of graphics cards compared to 1st Gen Steel Armor.
- 1 x PCIe 5.0/4.0/3.0 x16 slot* (one with Steel Armor II** and EZ PCIe Release)
- 1 x PCIe 4.0/3.0 x16 slot*
- 1 x PCIe 3.0 x1 slot*
*Supports x16x1x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The MAG B850 TOMAHAWK MAX WIFI motherboard features MSI’s M.2 slots:
- 2 x Gen5 x4 128Gbps slots*
- 1 x Gen4 x4 64Gbps slot*
- 1 x Gen4 x2 32Gbps slot*
*with M.2 Shield Frozr
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
- EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don’t have to worry about lost screws or overtightening.
- EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
- EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.
- EZ Antenna: MSI’s latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna’s placement.
High-Speed Connectivity
- 5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.
- Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
- USB 20G Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps*
*Only available through the internal front panel connector
| Brand | MSI |
|---|---|
| Model | MAG B850 TOMAHAWK MAX WIFI |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD B850 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Up to DDR5 8400+ MT/s (OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Memory Feature | Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: – 1DPC 1R Max speed up to 8400+ MT/s – 1DPC 2R Max speed up to 6400+ MT/s – 2DPC 1R Max speed up to 6400+ MT/s – 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
| PCI Express 5.0 x16 | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
|---|---|
| PCI Express x4 | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) *PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot |
| PCI Express x1 | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot. ** Please refer to the manual for M.2 SSD heatsink restrictions |
| SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Audio Chipset | Realtek ALC4080 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8126VB |
|---|---|
| Max LAN Speed | 5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |

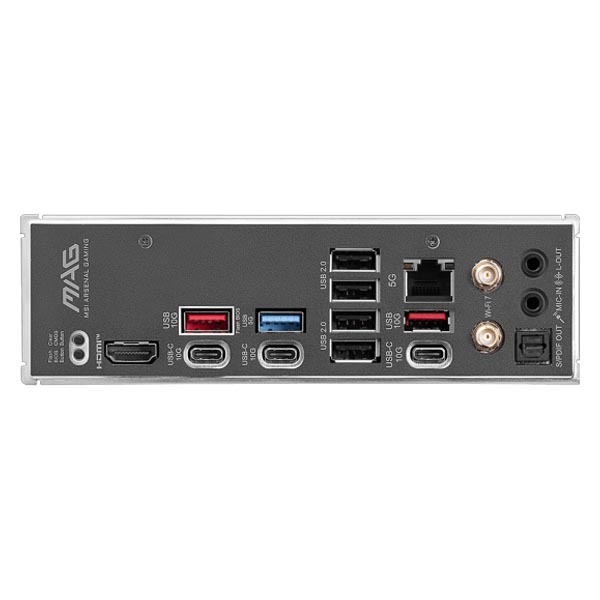

| Back I/O Ports | 1 x Clear CMOS Button / 1 x Flash BIOS Button / 1 x LAN (RJ45) / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x USB 3.2 Gen 2 Type-A / 3 x USB 3.2 Gen 2 Type-C / 4 x USB 2.0/1.1 |
|---|
| Onboard USB | 4 x USB 2.0 ports 4 x USB 5Gbps Type A ports 1 x USB 20Gbps Type C ports |
|---|---|
| Other Connectors | 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 6 x System Fan 1 x EZ Conn-header (JAF_2) 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 3 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) |
| Form Factor | ATX |
|---|---|
| LED Lighting | 4 x EZ Debug LED 1 x EZ Memory Detection LED |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin) |
| Windows 11 | Windows 11 64-bit |
|---|
| Dimensions | 7.00 × 34.50 × 27.01 cm |
|---|---|
| Brand |
MSI |
| Color |
Black |
| Product type |
Normal |
| Chipset |
B850 |
| Socket |
AM5 |
| Ram type |
DDR5 |
| Warranty |
3 Years |
| Ean code |
4711377290623 |
