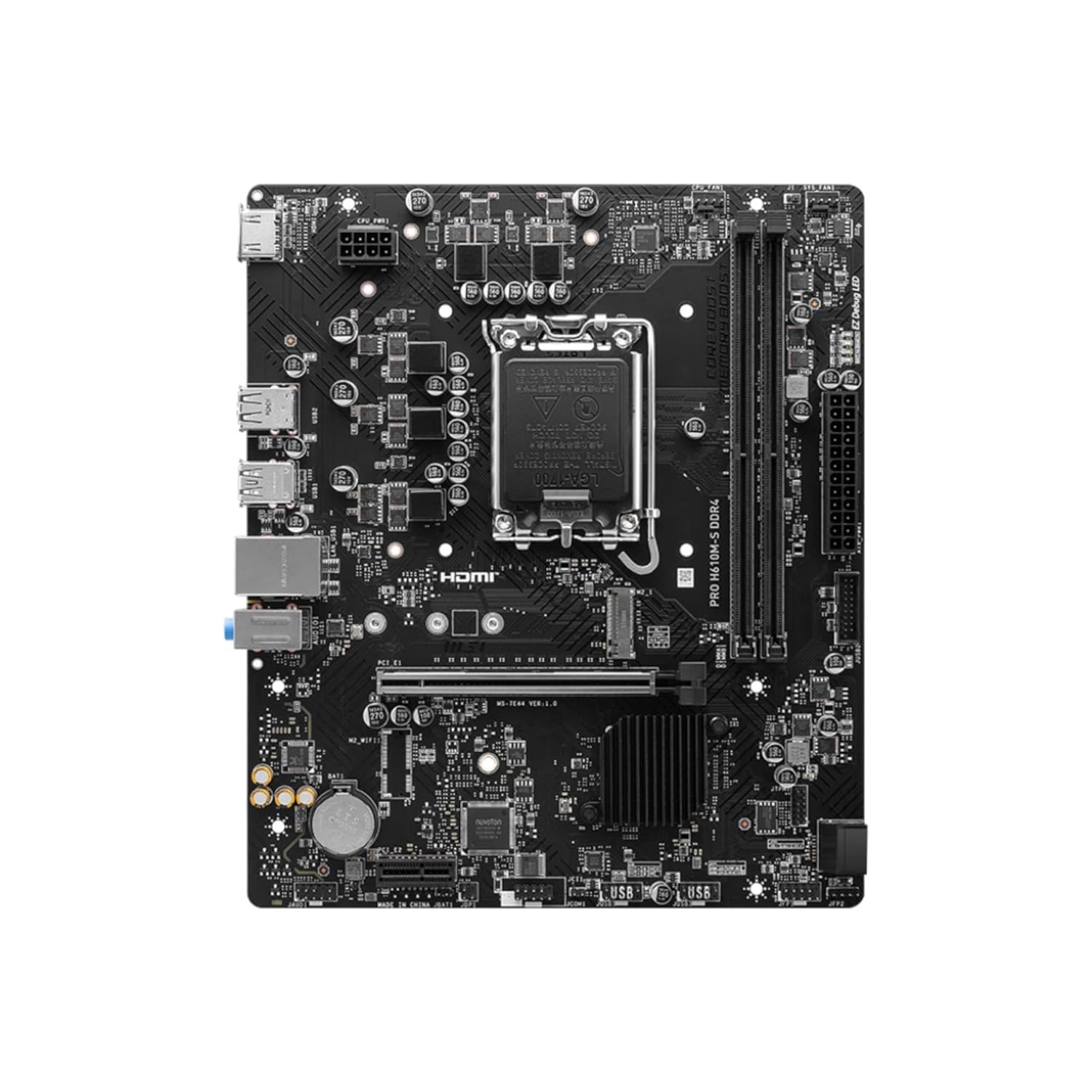

Name: MSI Pro H610M-S DDR4 Motherboard - (PRO-H610M-S-DDR4) - Variety Infotech
SKU: PRO-H610M-S-DDR4
Price: 5799.00 INR
Availability: InStock

MSI Pro H610M-S DDR4 Motherboard – PRO-H610M-S-DDR4

Features:

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications:

Model	MSI PRO H610M-S DDR4
Chipset	INTEL H610
CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Memory	2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN	Realtek RTL8111H Gigabit LAN
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	HDMI USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 LAN port Audio Connectors USB 2.0
OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Info	mATX 200mmx236.16mm
Warranty	3 Years
Note	* Image use for reference only * Features, Price, Specifications are subject to change without notice.

Weight	0.9 kg
Dimensions	20 × 23.6 × 6 cm
Brand	MSI
Color	Black
Socket	LGA1700
Chipset	H610
Ram type	DDR4
Product type	Normal
Motherboard series	MSI PRO
Ean code	4711377002660
Motherboard size	M-ATX
