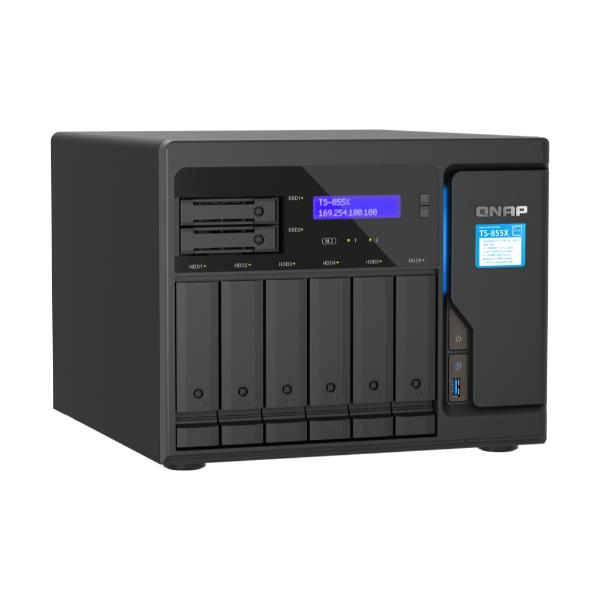

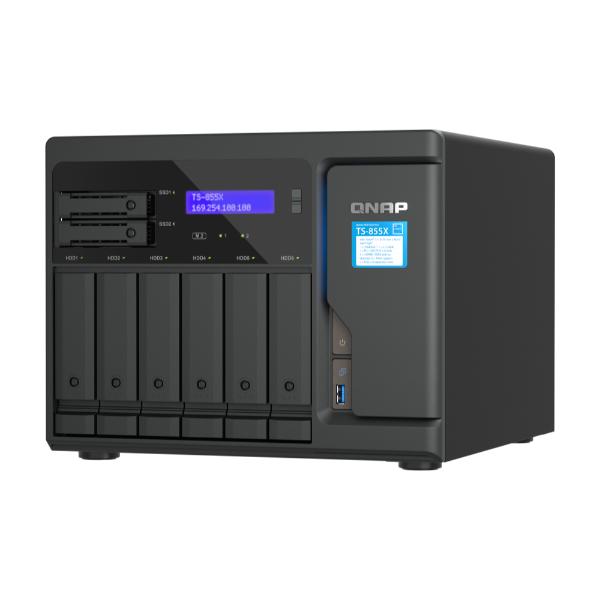

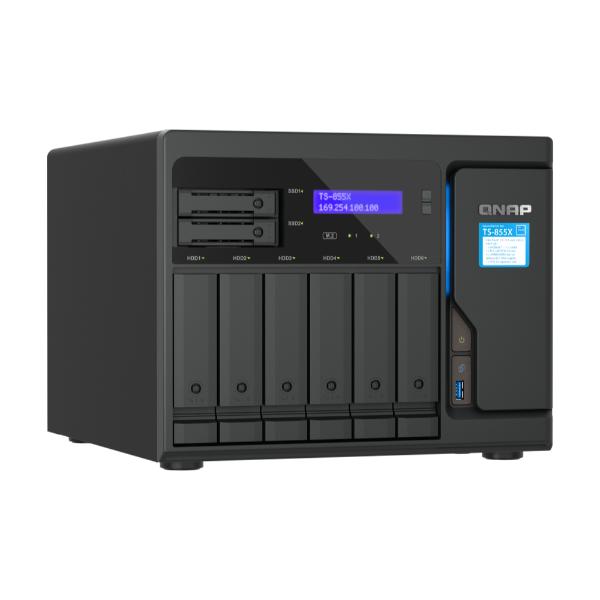

QNAP TS-855X-8G-US 8 Bay High-Performance 8-core 10GbE NAS
RAM & SSD & Graphics Card prices are highly volatile. Please confirm stock and price before placing your order.
- Intel Atom C5125 8C 2.8GHz processor and 8GB U-DIMM DDR4 RAM (up to 128GB with ECC Support).
- Single 10Gbase-T (10G/5G/2.5G/1G/100M) and dual 2.5GbE (2.5G/1G/100M) ports accelerate file sharing across teams and devices or streamline large file transfers.
- Dual M.2 PCIe Gen 3 x4 NVMe SSD slots enable cache acceleration or SSD storage pools for improved performance.
- Dual PCIe Gen 3 x4 slots allow for installing additional Network adapters, QM2 cards, or Fibre Channel cards to increase application performance.
- Backup Google Workspace & Microsoft 365 accounts and files to NAS with Boxafe
- Comprehensive surveillance solution for 24/7 security with QVR Pro
- Create a disaster recovery plan with ransomware protection using QNAP’s storage snapshot solution
Original price was: ₹329,999.00.₹175,299.00Current price is: ₹175,299.00. (Inclusive of GST)
Guaranteed Safe Checkout
🔒 Secure payments powered by Cashfree– India’s trusted payment gateway.
Easy EMI options available on credit cards.
For domestic buyers, orders are shipped through registered domestic courier companies and /or speed post only. Orders are shipped within 3-5 working days or as per the delivery date agreed at the time of order confirmation and delivering of the shipment subject to Courier Company/post office norms. Variety Infotech is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 3-5 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. Delivery of all orders will be to the registered address of the buyer as per the credit/debit card only at all times (Unless specified at the time of Order). Variety Infotech is in no way responsible for any damage to the order while in transit to the buyer. Variety Infotech is proud to use fast, easy, and efficient secure payments gateways. All major cards are accepted.
We offer an exchange only if the product is not working. All requests will be approved after verification.
Note: an Unboxing video is mandatory to initiate any kind of exchange with unboxing video no exchange will be considered
QNAP TS-855X-8G-US 8 Bay High-Performance 8-core 10GbE NAS
Specifications
- Intel Atom C5125 8-core processor, 2.8GHz
- 8GB non-ECC UDIMM DDR4 (Max 128GB) (Supports ECC memory)
- 6 x 3.5-inch + 2 x 2.5-inch SATA drive bays
- 2 x M.2 2280 PCIe Gen 3 x4 slots
- 1 x 10GbE port
- 2 x 2.5GbE ports
- 2 x PCIe Gen 3 x4 slots
- 3 x USB 3.2 Gen 1 ports
TS-855X
High-performance 8-core 10GbE NAS for deploying hybrid-infrastructure storage and high-speed virtualization applications
The high-capacity TS-855X has six 3.5-inch SATA drive bays (for HDDs), two 2.5-inch SATA drive bays (for SSDs) and an 8-core processor supporting Intel QuickAssist Technology (QAT), greatly assisting businesses in deploying a data storage and virtualization environment.
The built-in 10GbE/2.5GbE high-speed connectivity helps realize fast data access, backup/restoration, file server, and virtualization applications. Running the QTS operating system as standard, the TS-855X can be switched to use the ZFS-based QuTS hero operating system based on your requirements.
High-Speed Data Sharing
Excel in bandwidth-demanding applications (including massive file transfer, high-speed backup/restoration, multimedia streaming, and virtualization).
Virtual Machines and Containers
Host virtual machines and containerized apps on one device to optimize resource utilization and IT budgeting. Supports SR-IOV.
Adaptable Storage Expansion
Connect TL-R1620Sep-RP / TL-R1220Sep-RP JBOD units to the TS-855X for adding up to 48 additional drive capacity to match your business growth.
Flexible PCIe Expansion
Features two PCIe Gen 3 slots for installing 5/10/25GbE network cards, QM2 cards or Fibre Channel cards.
System Specifications Table
| Category | Details |
|---|---|
| CPU | Intel® Atom® C5125, 8-core, 2.8 GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | AES-NI |
| System Memory (Installed) | 8 GB non-ECC UDIMM DDR4 (1 × 8 GB) |
| Maximum Memory | 128 GB (4 × 32 GB) |
| Memory Slots | 4 × U-DIMM DDR4 |
| ECC Memory Support | Yes |
| Flash Memory | 5 GB (Dual boot OS protection) |
Storage & Drive Support
| Category | Details |
|---|---|
| Drive Bays | 6 × 3.5-inch + 2 × 2.5-inch SATA (6Gb/s, 3Gb/s) |
| 3.5-inch Drive Support | 3.5-inch SATA HDDs, 2.5-inch SATA SSDs |
| 2.5-inch Drive Support | 2.5-inch SATA SSDs |
| Hot-Swappable | Yes |
| Not Hot-Swappable | M.2 SSDs, SSD cache drives, PCIe SSDs |
| M.2 Slots | 2 × M.2 2280 PCIe Gen 3 x4 |
| M.2 SSD Included | No |
| M.2 Cooling Recommendation | Heatsink recommended |
| SSD Cache Acceleration | Supported |
Networking
| Category | Details |
|---|---|
| SR-IOV | Supported |
| 2.5 GbE Ports | 2 × (2.5G / 1G / 100M / 10M) |
| 10 GbE Port | 1 × 10GBASE-T (10G / 5G / 2.5G / 1G / 100M) |
| 25 GbE Support | Optional via PCIe expansion card |
| Wake on LAN (WOL) | Supported (2.5 GbE port only) |
| Jumbo Frame | Supported |
Expansion & I/O
| Category | Details |
|---|---|
| PCIe Slots | 2 |
| PCIe Slot 1 | Gen 3 x4 (260 × 111.15 × 18.76 mm) |
| PCIe Slot 2 | Gen 3 x4 (150 × 68.9 × 18.76 mm) |
| USB 2.0 Ports | 1 |
| USB 3.2 Gen 1 Ports | 3 |
| Other Interfaces | Kensington security slot |
| System Warning | Buzzer |
Physical & Design
| Category | Details |
|---|---|
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1–6, SSD1–2, M.2 SSD1–2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (H × W × D) | 225 × 292.9 × 319.8 mm |
| Foot Pad Height | Up to 30 mm (not included in dimensions) |
| Weight (Net) | 10.04 kg |
| Weight (Gross) | 10.04 kg |
Thermal, Power & Environment
| Category | Details |
|---|---|
| Operating Temperature | 0 – 40 °C (32 – 104 °F) |
| Storage Temperature | -20 – 70 °C (-4 – 158 °F) |
| Relative Humidity | 5–95% RH (non-condensing), wet bulb 27 °C |
| Power Supply Unit | 250W PSU, 100–240V |
| Power Consumption (Typical) | 86.96 W (fully populated drives) |
| System Fans | 2 × 80 mm (12VDC) |
| CPU Fan | 1 × 90 mm (12VDC) |
Other
| Category | Details |
|---|---|
| Kensington Security Slot | Yes |
| Standard Warranty | 3 Years |
| Max Concurrent CIFS Connections | 2500 (with max memory) |
| Weight | 9.98 kg |
|---|---|
| Dimensions | 43.18 × 40.64 × 10.16 cm |
| Brand | QNAP |
| Color | Black |
| Product type | Normal |
| Nas bays | 6 |
| Warranty | 3 Years |
| Ean code | 4711103084007 |
