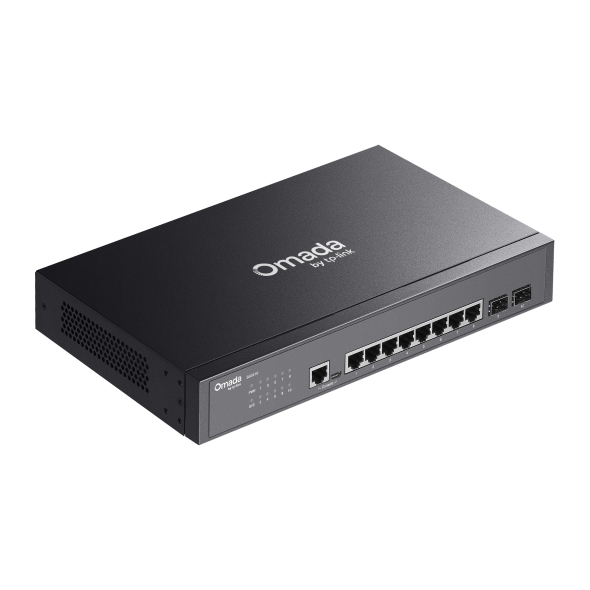

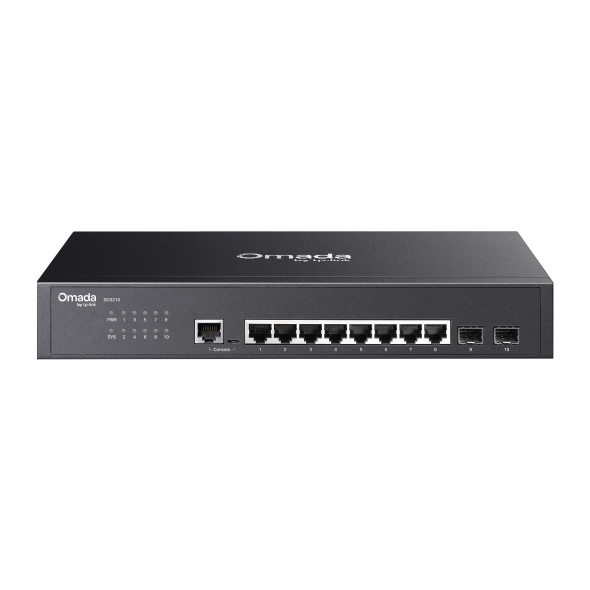

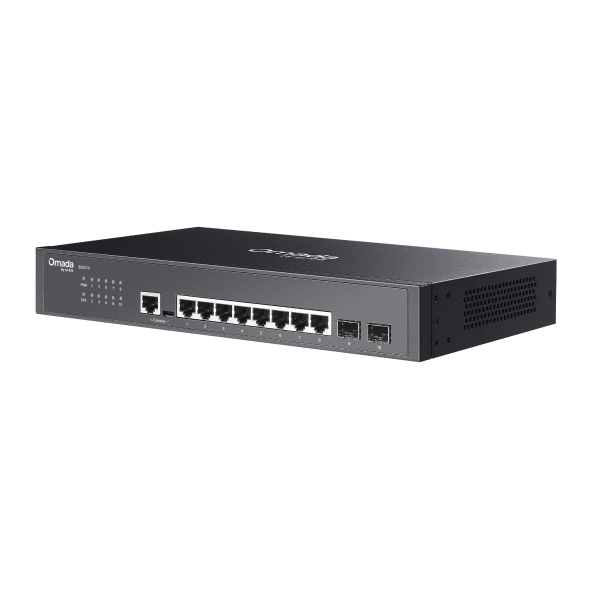

TP-Link Omada SG3210 V3.30 Access 8-Port Gigabit Switch with 2 SFP Slots
RAM & SSD & Graphics Card prices are highly volatile. Please confirm stock and price before placing your order.
- 8× Gigabit RJ45 ports and 2× Gigabit SFP slots
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
Call for Price
Guaranteed Safe Checkout
🔒 Secure payments powered by Cashfree– India’s trusted payment gateway.
Easy EMI options available on credit cards.
For domestic buyers, orders are shipped through registered domestic courier companies and /or speed post only. Orders are shipped within 3-5 working days or as per the delivery date agreed at the time of order confirmation and delivering of the shipment subject to Courier Company/post office norms. Variety Infotech is not liable for any delay in delivery by the courier company / postal authorities and only guarantees to hand over the consignment to the courier company or postal authorities within 3-5 working days from the date of the order and payment or as per the delivery date agreed at the time of order confirmation. Delivery of all orders will be to the registered address of the buyer as per the credit/debit card only at all times (Unless specified at the time of Order). Variety Infotech is in no way responsible for any damage to the order while in transit to the buyer. Variety Infotech is proud to use fast, easy, and efficient secure payments gateways. All major cards are accepted.
We offer an exchange only if the product is not working. All requests will be approved after verification.
Note: an Unboxing video is mandatory to initiate any kind of exchange with unboxing video no exchange will be considered
TP-Link Omada SG3210 V3.30 Access 8-Port Gigabit Switch with 2 SFP Slots
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
| Category / Feature | Details |
| HARDWARE FEATURES | |
| Interface | • 8× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) • 2× 100/1000 Mbps SFP Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |

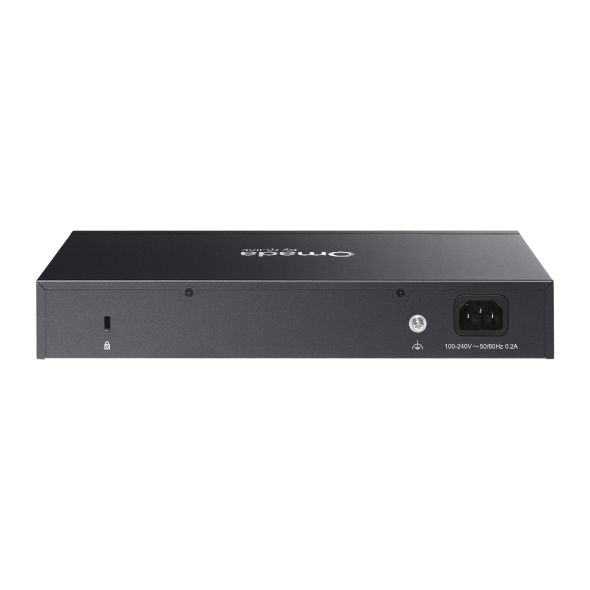

| Power Supply | 100-240 V AC ~ 50/60 Hz |
| Dimensions (W x D x H) | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
| Surge Protection | ±6 kV |
| Mounting | Rack Mountable / Desktop |
| Max Power Consumption | 6.84 W (220 V/50 Hz) |
| Max Heat Dissipation | 23.33 BTU/h (220 V/50 Hz) |
| PERFORMANCE | |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.89 Mpps |
| MAC Address Table | 8K |
| SOFTWARE FEATURES | |
| Quality of Service (QoS) | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rate Limiting • Action for Flows: QoS remark (802.1P, DSCP) |
| L2 and L2+ Features | • 32 IP Interfaces (IPv4/IPv6) • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP (128 entries) & 316 ARP Entries (Proxy / Gratuitous) • DHCP Server & DHCP Relay (Interface, VLAN, L2) • Link Aggregation, Spanning Tree, Loopback Detection, 802.3x Flow Control, Mirroring |
| L2 Multicast | • Supports 511 (IPv4, IPv6) IGMP groups • IGMP/MLD Snooping, IGMP Authentication • Multicast VLAN Registration (MVR) • Multicast Filtering: 256 profiles (16 entries per profile) |
| Advanced & ISP Features | • Omada Cloud Features: Auto Device Discovery, Batch Config/Firmware Upgrade, Intelligent Monitoring, Abnormal Event Warnings, Reboot Schedule • ISP Specific: L2PT, DLDP, PPPoE ID Insertion, ERPS, 802.3ah Ethernet Link OAM, DDM |
| VLAN | • Max 4K VLAN Groups • 802.1q Tagged VLAN, MAC VLAN (12 Entries), Protocol VLAN (16) • GVRP, VLAN VPN (QinQ: Port-Based / Selective), Voice VLAN |
| Access Control List (ACL) | • Time-based, Combined, Packet Content, and IPv6 ACLs • MAC ACL (Source/Destination MAC, VLAN ID, Priority, Ether Type) • IP ACL (Source/Destination IP, Fragment, Protocol, TCP Flag, Ports, DSCP/TOS) • Policies: Mirroring, Redirect, Rate Limit, QoS Remark applied to Port/VLAN |
| Security | • IP-MAC-Port Binding: 512 Entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard (100 Entries) • IPv6-MAC-Port Binding: 512 Entries, DHCPv6 Snooping, ND Detection/Snooping, IPv6 Source Guard (100 Entries) • DoS Defend, DHCP Filter, Static/Dynamic Port Security (Up to 64 MACs/port) • Broadcast/Multicast/Unicast Storm Control (kbps/ratio/pps) • 802.1X Authentication (Port/Mac-based, MAB, Guest VLAN, Radius) • AAA (including TACACS+), Port Isolation • Management Security: HTTPS (SSLv3/TLS 1.2), SSHv1/SSHv2 |
| IPv6 Support | • Dual IPv4/IPv6 stack, MLD Snooping, IPv6 ACL, Static IPv6 Routing, ND & Path MTU Discovery, ICMPv6, TCPv6/UDPv6 • IPv6 Applications: DHCPv6 Client, Ping6, Tracert6, Telnet, SNMP, SSH, SSL, HTTP/HTTPS, TFTP |
| MIBs | • MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674) • Radius Accounting/Authentication Client MIBs, Remote Ping/Traceroute MIB • RMON MIB (groups 1, 2, 3, 9), TP-Link private MIBs |
| MANAGEMENT | |
| Omada App & Cloud | • Yes (Requires Omada Hardware, Software, or Cloud-Based Controller) • Zero-Touch Provisioning (Requires Cloud-Based Controller) |
| Management Interfaces | • Web-based GUI, CLI (Console port, Telnet), SNMPv1/v2c/v3, RMON • SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall • Dual Image & Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | SG3210 Switch, Power Cord, Console Cable, Rackmount Kit, Rubber Feet, Quick Installation Guide |
| System Requirements | Windows 98SE/NT/2000/XP/Vista/7/8/10/11, MAC OS, NetWare, UNIX, or Linux |
| Environment | • Operating Temp: -5 to 50 ℃ (23 to 122 ℉) • Storage Temp: -40 to 70 ℃ (-40 to 158 ℉) • Operating Humidity: 10–90% RH (non-condensing) • Storage Humidity: 5–90% RH (non-condensing) |
